Component Locations

COMPONENT LOCATIONS

Component	Location
Central Locking System Control Module	Fig 1 Behind Instrument Cluster
Door Lock Actuators	Fig 1 Behind Door Trim

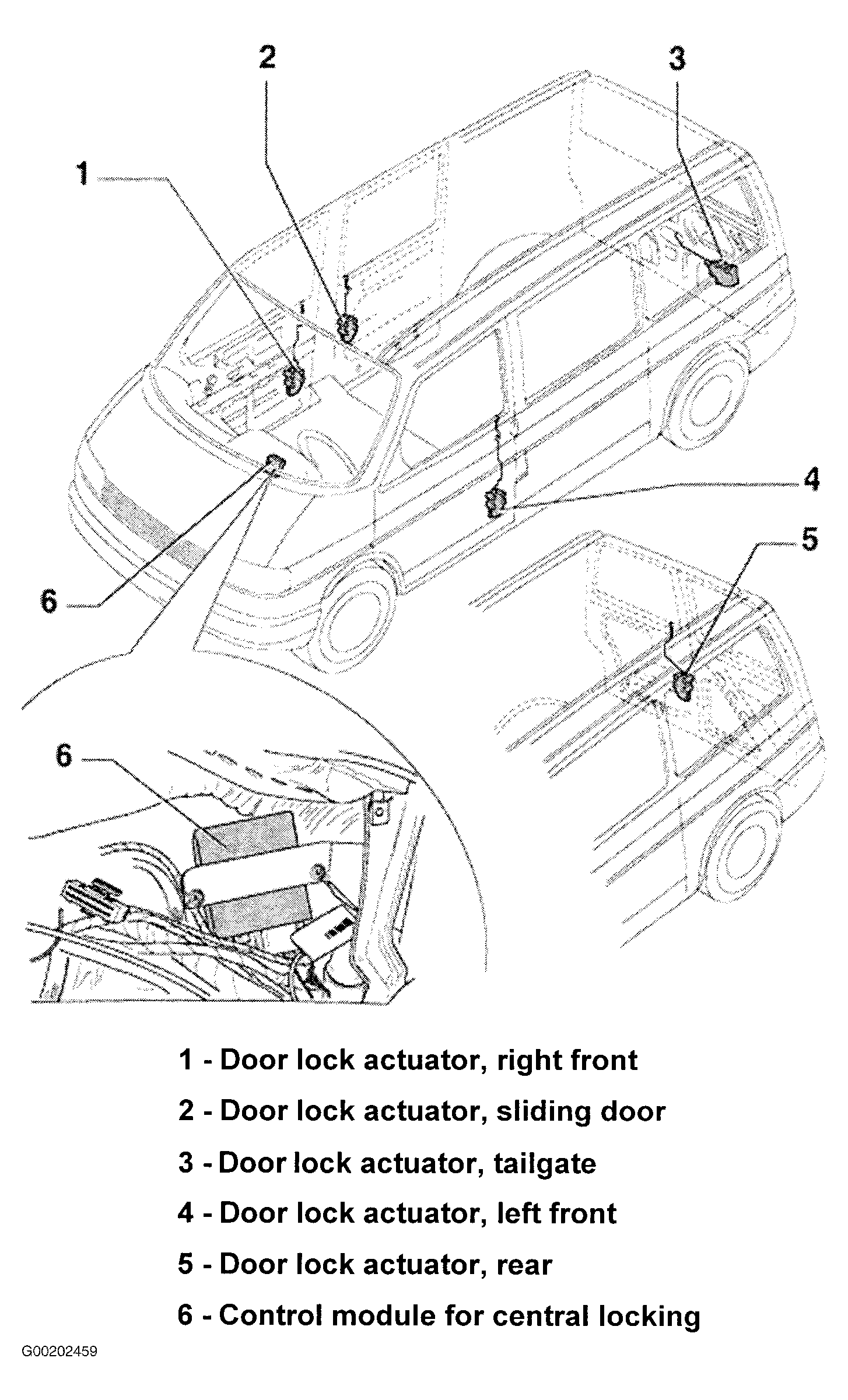

Fig 1: Locating Central Locking System Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.
