Cooling System Specifications: Notes

BELT ADJUSTMENT SPECIFICATIONS

Application	Specification
A/C Compressor	(1)
Generator	(1)
Power Steering	(1)
(1) Serpentine belt tension is automatically adjusted by tensioner.

COOLING SYSTEM SPECIFICATIONS

Application			Specification
Volume (1)			9.7 Qts. (9.2L)
Cooling Fan Thermal Switch (2)
First Stage
On			183-192°F (84-89°C)
Off			168-181°F (76-83°C)
Second Stage
On			194-203°F (90-95°C)
Off			180-192°F (82-89°C)
Thermostat
Starts To Open			176°F (80°C)
Fully Open			221°F (105°C)
Opening Stroke			.28" (7mm)
Reservoir Cap Opening Pressure			17-22 psi
(1) Total coolant quantity may vary depending on vehicle equipment. Total coolant quantity may vary depending on vehicle equipment. Only use coolant additive G12 (according to TL VW 774 D).It is a red color. Do NOT mix G12 with any other coolant additive! See COOLING SYSTEM PRECAUTIONS  . (2) Coolant fan thermal switch is located on right side of radiator.

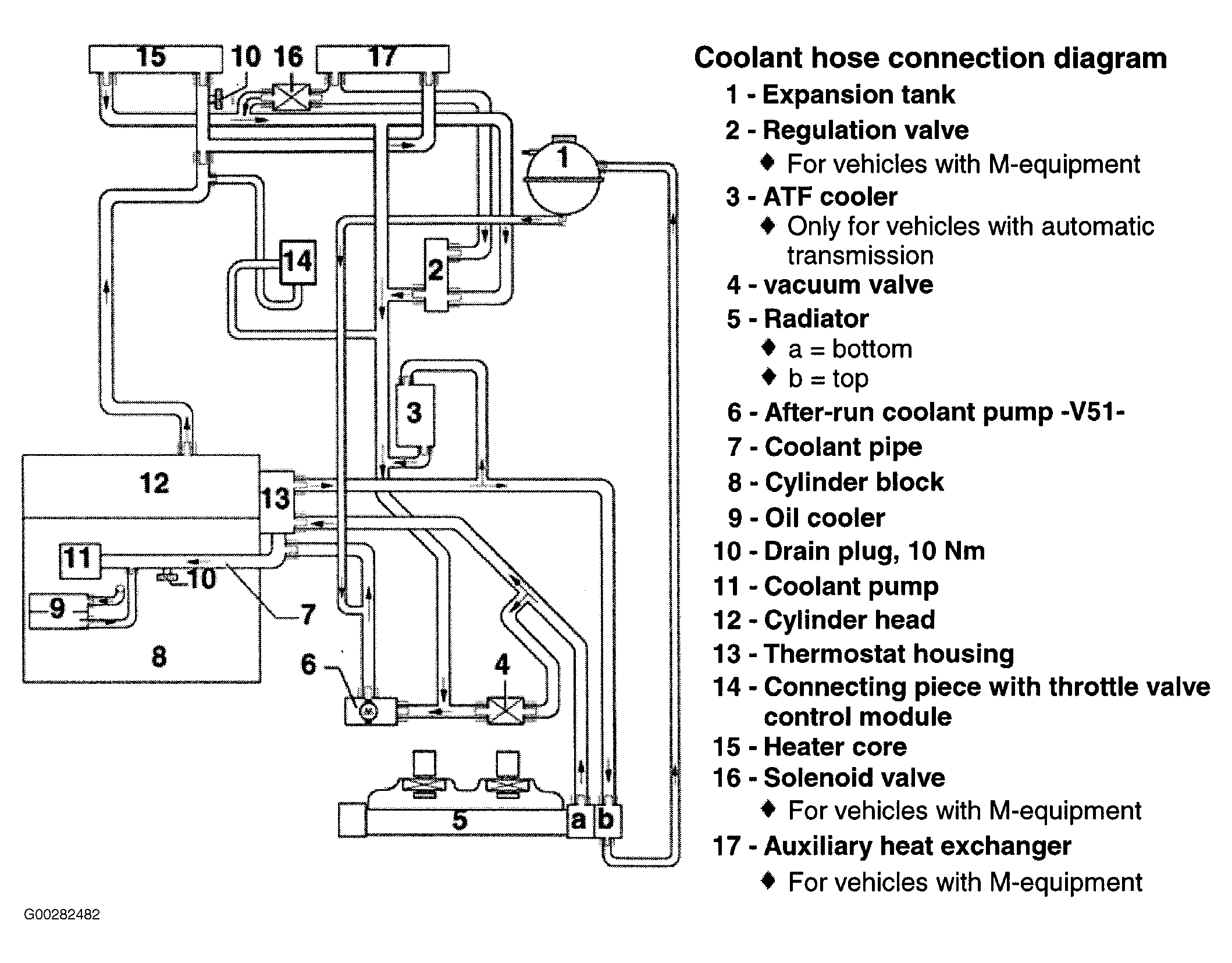

Fig 1: Coolant Hose Routing Diagram (2.8L VR6 - Engine Code AXK)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
