Transmission, Disassembling And Assembling
›
Planetary Transmission Overview
Planetary Transmission Overview

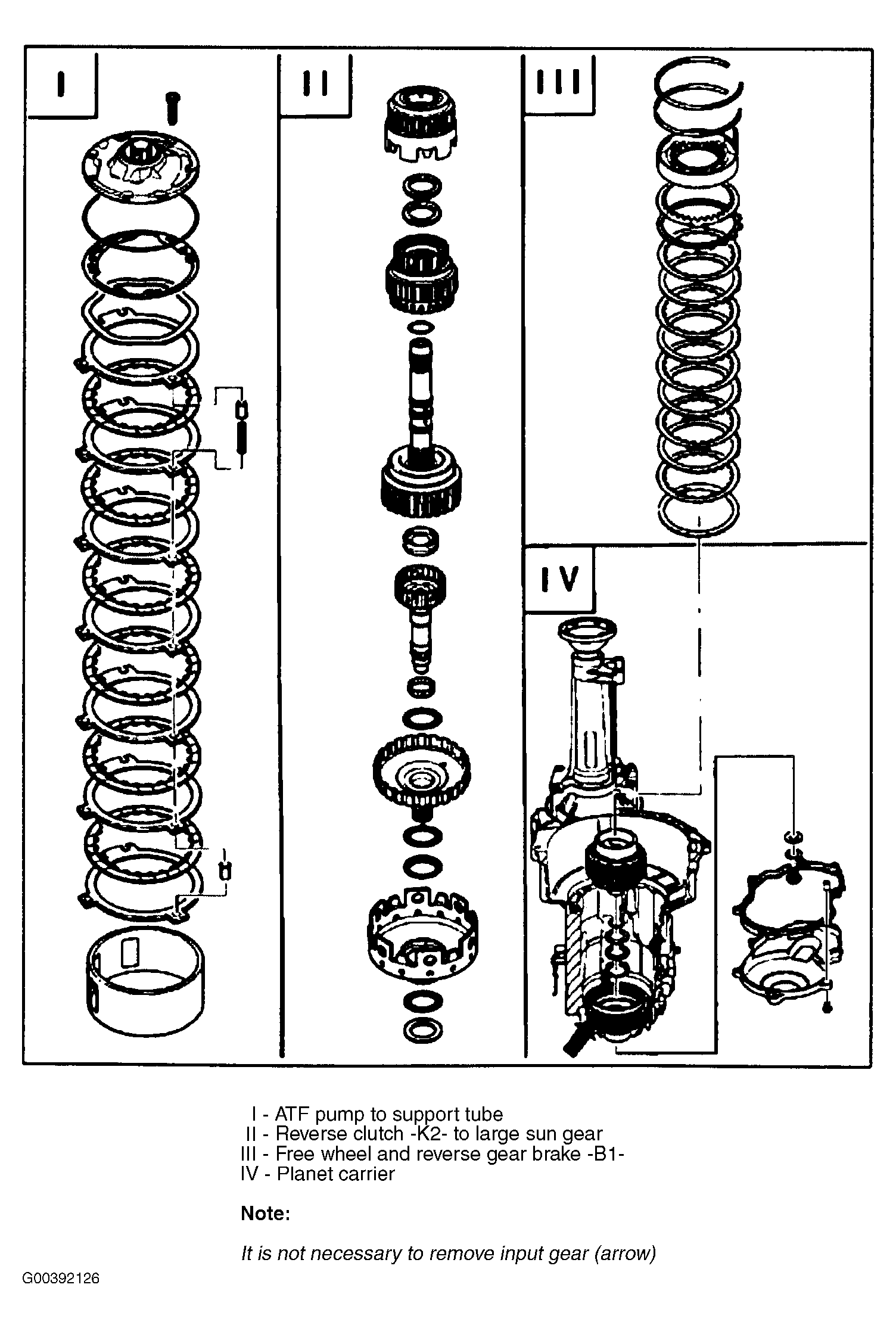

Fig 1: Overview Of Planetary Transmission
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
