Checking secondary resistances

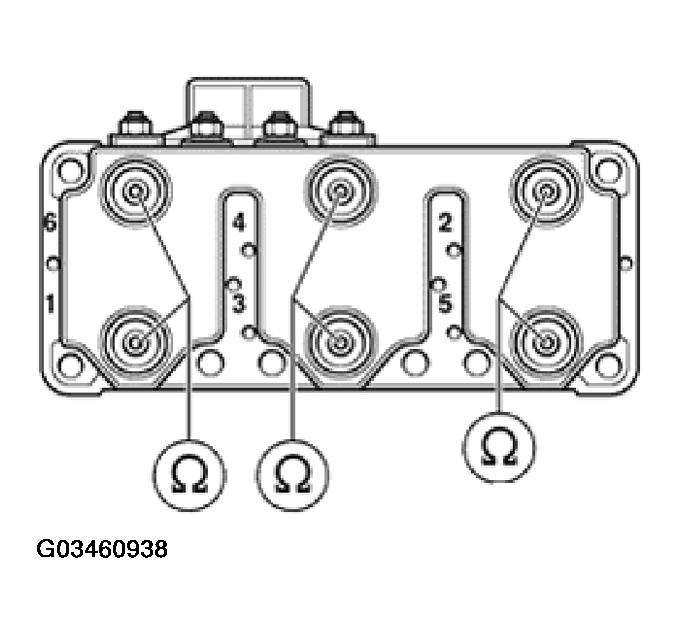

- Check secondary resistances at terminal 4 between
Cyl. 1 + Cyl. 6,
Cyl. 3 + Cyl. 4,
Cyl. 2 + Cyl. 5.
Specified value: 3,6... 4.4 k Ω
If specified values are not obtained:
- Replace Ignition Coil -N152-. See item 7.
- Erase DTC memory of Engine Control Module (ECM). See DIAGNOSTIC MODE 4: RESET/ERASE DIAGNOSTIC DATA .
- Generate readiness code. See READINESS CODE, GENERATING .
