Starter Does Not Crank Engine

NOTE: On vehicles with automatic transmission, ensure park/neutral switch is operating properly.

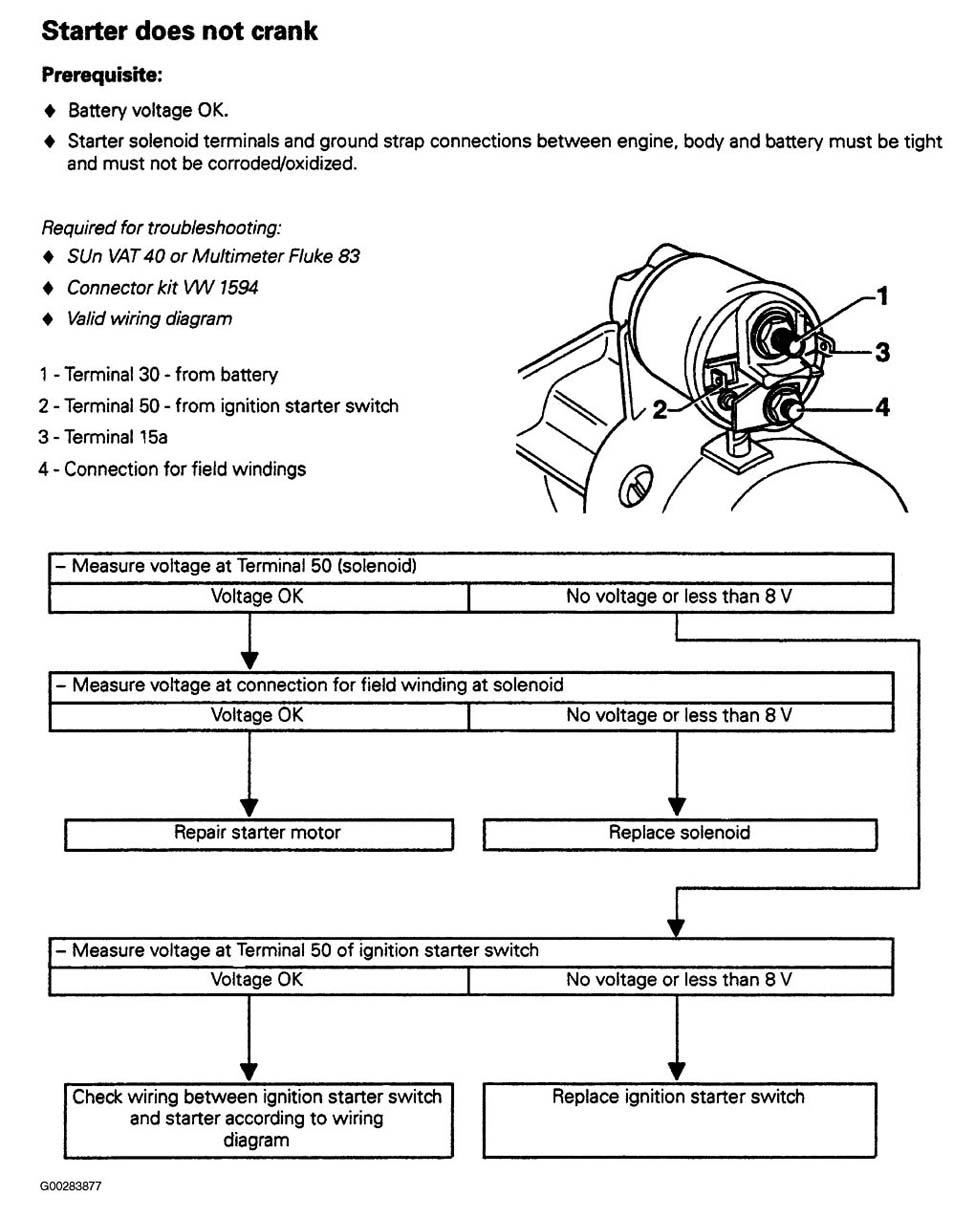

Fig 1: Testing Starter Circuit

Courtesy of VOLKSWAGEN UNITED STATES, INC.
