Marking roller chains

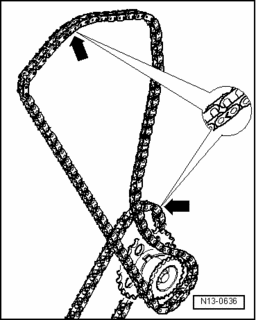

Fig 1: Identifying Markings On Roller Chains

GW00000467

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Mark roller chains before removing (e.g. with paint, - arrow - pointing in direction of rotation).

NOTE:

Do not mark chain with a punched mark, notch or similar!
