Steering Gear Assembly Overview
NOTE:
Currently, there is no service work to be performed on steering gear.
- Right Tie Rod End

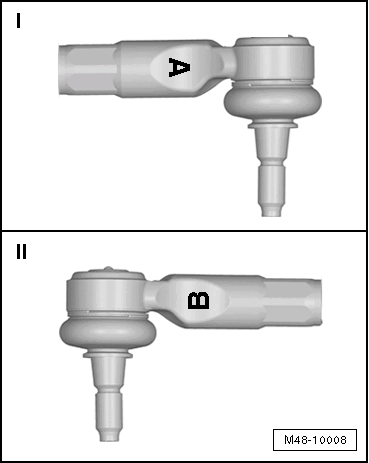

- Identified with "A". Refer to Figure.
- Removing and installing, refer to TIE ROD BALL JOINT, FROM MY 2009 .
- Checking, refer to CHECKING PLAY, SECURITY AND JOINT BOOTS OF TIE ROD ENDS .
- Installed position TIE ROD ENDS ALLOCATION .
- Nut
- 70 Nm
- Clamp
- Boot
- Must not be twisted after toe is adjusted.
- Removing and installing, refer to BOOT, FROM MY 2009 .
- Clamp
- Replace
- Tie Rod
- 100 Nm
- Removing and installing, refer to TIE ROD, FROM MY 2009 .
- Long Bonded Rubber Bushing
- Left, rear with centering
- Replacing, refer to STEERING GEAR BONDED RUBBER BUSHING, FROM MY 2009 .
- Power Steering Gear
- Removing and installing, refer to STEERING GEAR, FROM MY 2009 .
- Long Bonded Rubber Bushing
- Right rear.
- Replacing, refer to STEERING GEAR BONDED RUBBER BUSHING, FROM MY 2009 .
- Short Bonded Rubber Bushing
- Left and right front.
- Replacing, refer to STEERING GEAR BONDED RUBBER BUSHING, FROM MY 2009 .
- Backing Plate
- Left Tie Rod End
- Identified with "B". Refer to Figure.
- Removing and installing, refer to TIE ROD BALL JOINT, FROM MY 2009 .
- Checking, refer to CHECKING PLAY, SECURITY AND JOINT BOOTS OF TIE ROD ENDS .
- Installed position, refer to TIE ROD ENDS ALLOCATION .
