MULTIFUNCTION Steering Wheel Control Module

Removal

-- Remove driver's side airbag unit.

-- Remove the driver side airbag unit. Refer to Removal and Installation .

-- Disconnect both harness connectors at control module.

-- Using a suitable screwdriver, carefully pry out control module -arrow-.

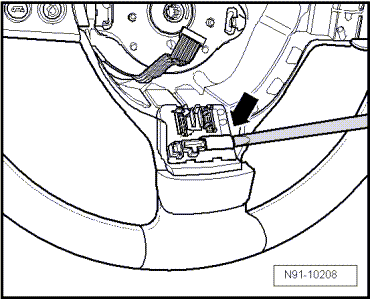

Fig 1: Removing Steering Wheel Control Module

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installation

Install in reverse order of removal.

-- Code control module for steering column electronics, refer to MULTIFUNCTION STEERING WHEEL, ADAPTING COMPONENTS .
