Ignition System Components Overview

  1. 1  - Ignition Coil 1 with Power Output Stage -N70-
  2. 1  - Ignition Coil 2 with Power Output Stage -N127-, similar
  3. 1  - Ignition Coil 3 with Power Output Stage -N291-, similar
  4. 1  - Ignition Coil 4 with Power Output Stage -N292-, similar
  5. 1  - Ignition Coil 5 with Power Output Stage -N323-, similar
  6. 1  - Ignition Coil 6 with Power Output Stage -N324-, similar
  7. 6  - Knock Sensor 1 -G61-
  8. 11  - Camshaft Position (CMP) Sensor 2 -G163-
  9. 14  - Camshaft Position (CMP) Sensor -G40-
  10. 15  - Knock Sensor 2 -G66-

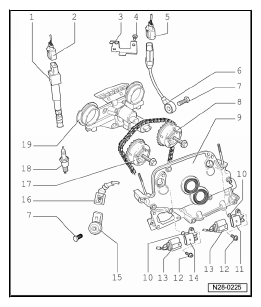

G12750457Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
