Electrical Component Locator: Connectors

CONNECTORS LOCATION

Component	Location

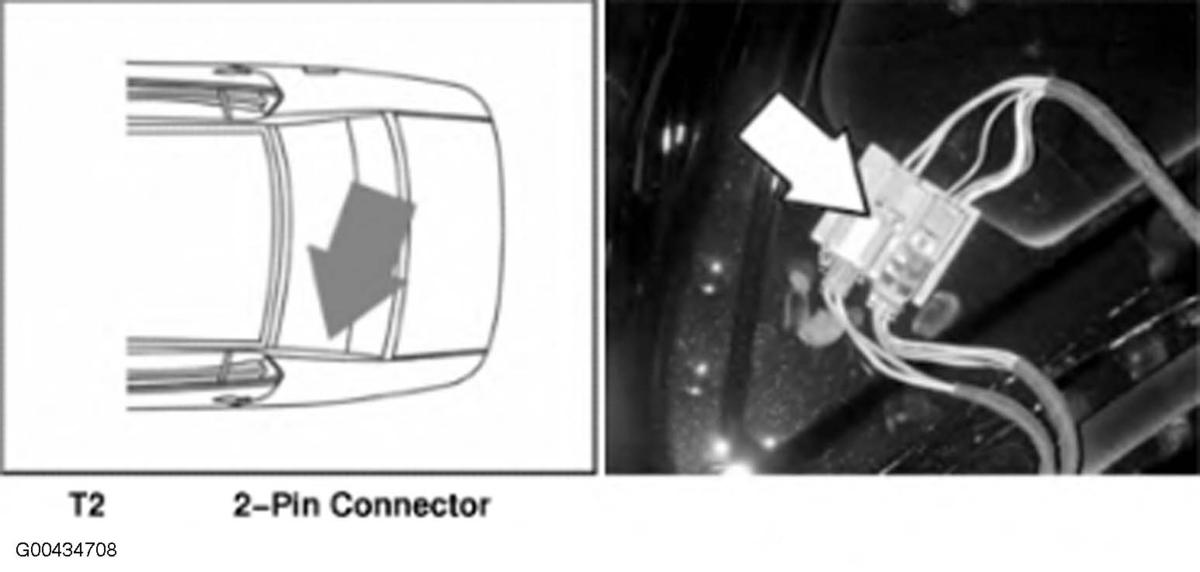

T2 (2 Pin)	Left side of luggage compartment lid. See Figure.

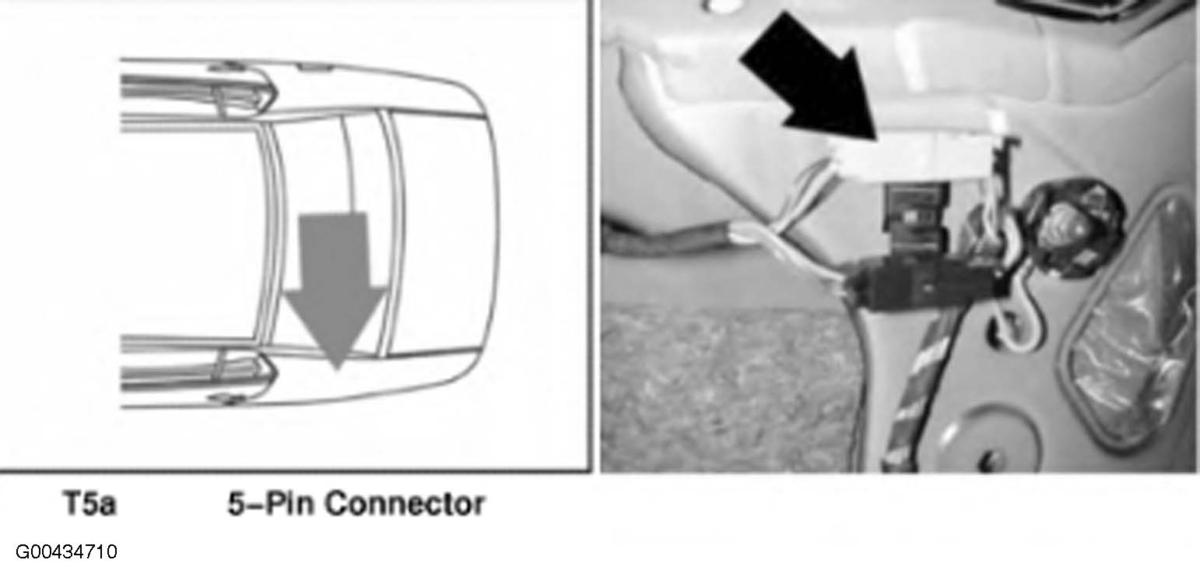

T5a (5 Pin)	At left front of luggage compartment. See Figure.

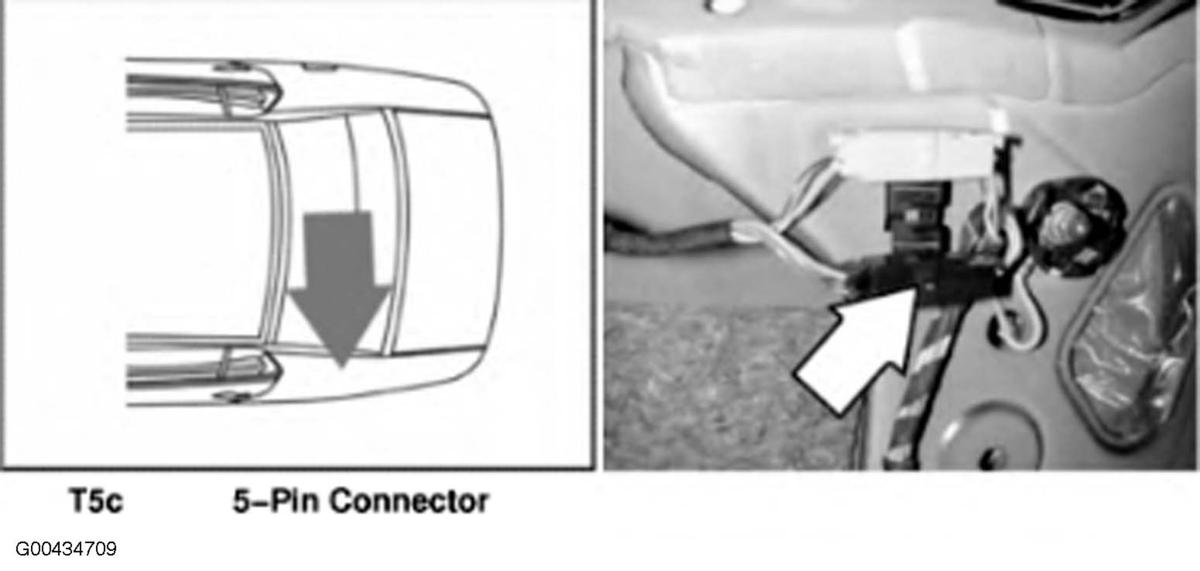

T5c (5 Pin)	At left front of luggage compartment. See Figure.
T6 (6 Pin)	Left side of luggage compartment lid. See Figure.
