ABS/EDL Control Module Connector End Views (J104, T26a)

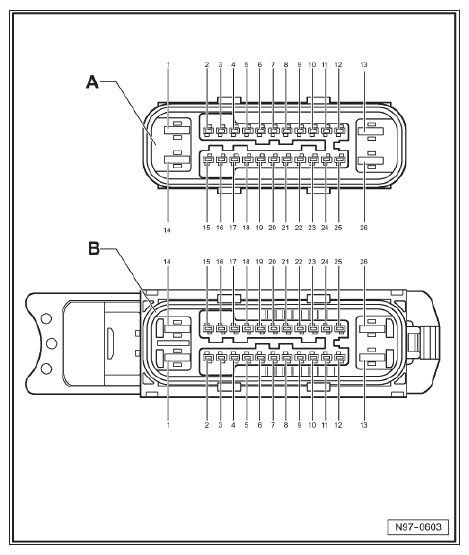

Fig 1: ABS/EDL Control Module Connector End Views (J104, T26a)

G10375918

A	ABS/EDL Control Module -J104-
B	26-pin connector -T26a-
