ABS/EDL Control Module Connector End Views (J104, T47a)

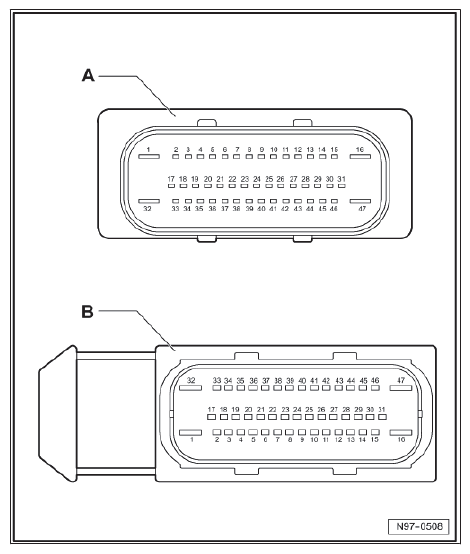

Fig 1: ABS/EDL Control Module Connector End Views (J104, T47a)

G10375919

A	ABS/EDL Control Module -J104-
	Only with ESP
B	47-pin connector -T47a-
