Vehicle Electrical Control Module System (F = 12-Pin) Connector End View (J519)

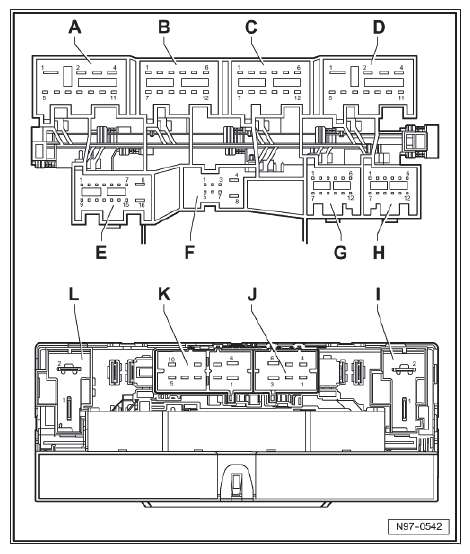

Fig 1: Vehicle Electrical Control Module System (F = 12-Pin) Connector End View (J519)

1	Power Supply Relay (terminal 50)
2	Power Supply Relay (terminal 15)
3	Windshield Wiper Motor, Rain/Light Recognition Sensor (LIN-Bus)
4	Generator (GEN)
5	Front Hood Switch
6	Back-Up Light Switch
7	Terminal 30
8	Terminal 31
