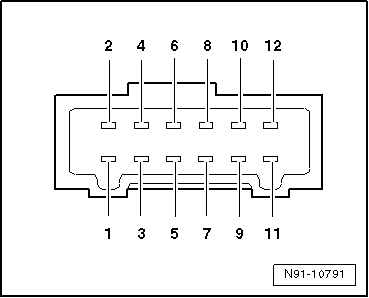

USB Connection BASEPLATE -R193- Connector
WARNING: This page is about a different variant/trim than selected.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
- DATA IN
- CLOCK
- Terminal 31
- DATA OUT
- Not used
- Terminal 30
- Right audio
- Control signal from the radio
- Audio ground
- Left audio
- Not used
- Not used
