Without Diversity Function Overview

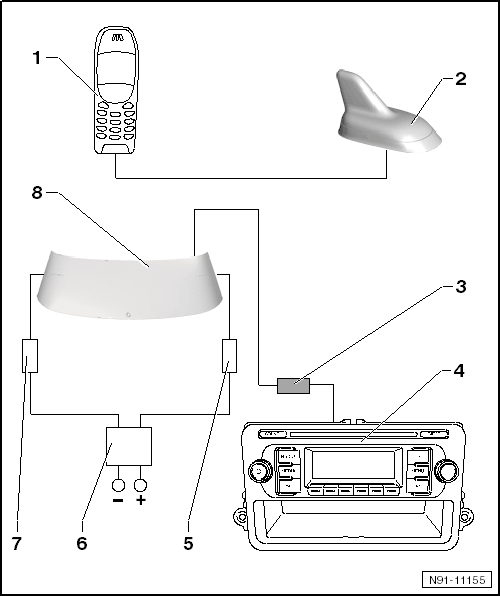

Fig 1: Identifying Antenna System Without Diversity Function Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Cellular Telephone -R54-
   • Optional
2. Antenna Antenna -R66-
   • Mounted on the roof.
   • Installed only on vehicles with telephone, navigation or auxiliary heater with remote control.
   • Removing and installing, refer to ROOF ANTENNA .
3. Right Antenna Module -R109-
   • For FM/AM reception
   • Impedance converter
4. Radio -R-
   • RCD 210
5. FM Frequency Filter (in negative wire) -R178-
   • Its function is to prevent antenna signals from shorting to Ground (GND).
   • Installed in the rear lid, refer to REAR WINDOW ANTENNA COMPONENTS INSTALLED LOCATIONS OVERVIEW .
6. AM Frequency Filter -R177-
   • Its function is to prevent antenna signals from shorting to Ground (GND).
   • Installed in the rear lid, refer to REAR WINDOW ANTENNA COMPONENTS INSTALLED LOCATIONS OVERVIEW .
7. FM Frequency Filter (in positive wire) -R179-
   • Its function is to prevent antenna signals from shorting to Ground (GND).
   • Installed in the rear lid, refer to REAR WINDOW ANTENNA COMPONENTS INSTALLED LOCATIONS OVERVIEW .
8. Rear Window Antenna 1 -R130-
