Overview - Front Axle Speed Sensor

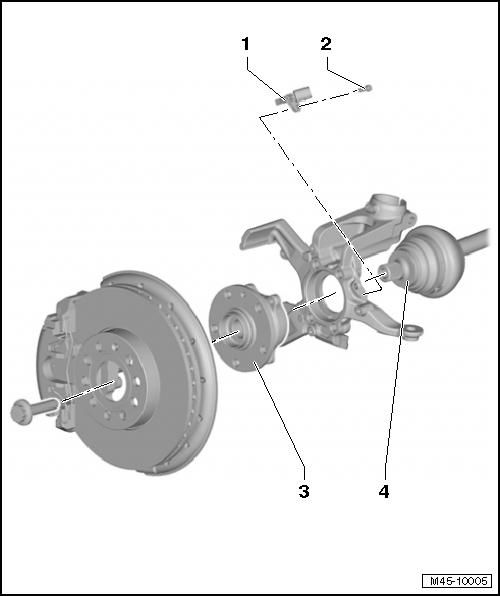

Fig 1: Identifying ABS Assembly Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Front ABS Wheel Speed Sensor --
   • Clean the inside of the hole and coat it with Hot Bolt Paste before installing the sensor.
   • Removing and installing, refer to RIGHT/LEFT FRONT ABS WHEEL SPEED SENSOR -G45- / -G47- .
2. Bolt
   • 8 Nm
3. Wheel Bearing Unit
   • The ABS sensor ring is installed in the wheel bearing.
4. Drive Axle
