Special Tools

Special tools and workshop equipment required

• Hose clamp pliers VAS6340
  Fig 1: Hose Clamp Pliers VAS 6340

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Plug1 H0 698 311 A
  Fig 2: Identifying Sealing Plug Repair Set, Part No. 1 H0 698 311 A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Torque Wrench 1331 5-50 Nm VAG1331
• Open Ring Spanner Insert - AF 11 mm VAG1410/6
• Torque Wrench - Universal Joint VAG1410/7
• Mini Torque Wrench VAS6854
• Brake Pedal Actuator VAG1869/2.
• Torque Wrench - Assembly Tool VAG1410/8

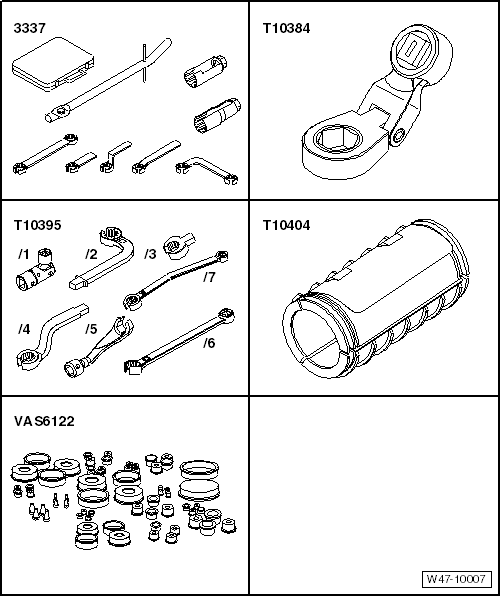

Special tools and workshop equipment required

• Heated oxygen sensor wrench 3337
• Wrench SW 13T10384
• Assembly tool T10365
• Transport Protection T10404
• Engine Bung Set VAS6122

Special tools and workshop equipment required

• Hose Clip Pliers VAS6340
  Fig 5: Identifying Hose Clip Pliers

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
