Test Procedure

-- Perform a preliminary check to verify the customers complaint. Refer to PRELIMINARY CHECK

Start diagnosis

-- Disconnect the Reducing Agent Injector -N474- -3- electrical harness connector.

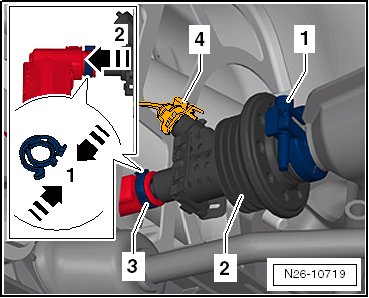

Fig 1: Identifying Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The exhaust system MUST be at room temperature or the readings will be incorrect.
