Automatic Glow Time Control Module -J179-: Removing

-- Remove the E-box cover -arrows- inside the engine compartment.

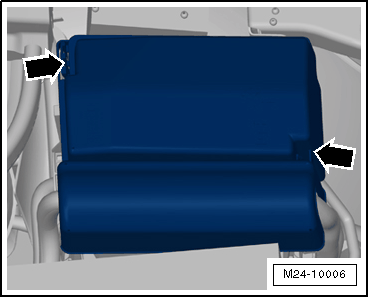

Fig 1: Identifying Engine Control Module (E-Box) Cover
GWWM24-10006Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the automatic glow time control module -J179- -arrow- from its location in the E-Box -1- in the engine compartment.

Fig 2: Identifying Automatic Glow Time Control Module
GWWN28-10112Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
