Test Step 6 - Logic Ground Open

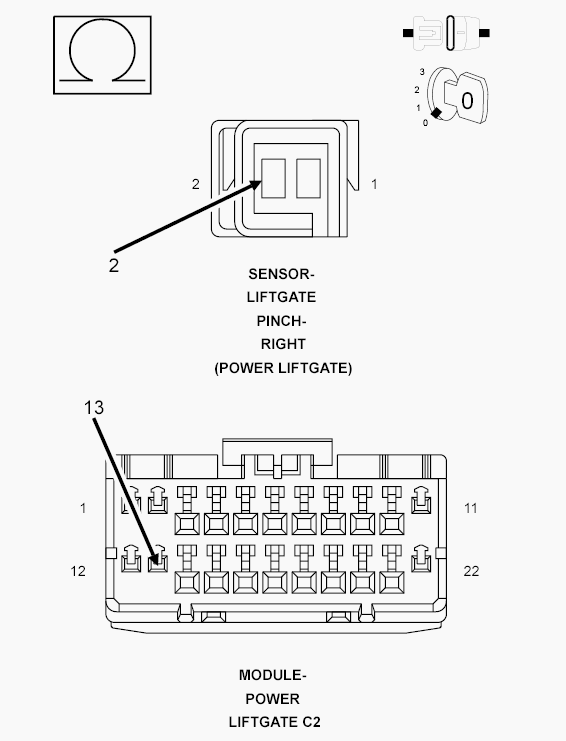

Fig 1: Logic Ground Open

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Measure the resistance of the logic ground circuit between the right liftgate pinch/temp sensor connector and the power liftgate C2 harness connector.

Is the resistance less than 2.0 ohms?

Yes

• Replace the power liftgate module. Refer to POWER LIFTGATE CONTROL MODULE .
• Perform the Body Verification Test. Refer to BODY VERIFICATION TEST .

No

• Repair the logic ground circuit for an open.
• Perform the Body Verification Test. Refer to BODY VERIFICATION TEST .
