Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

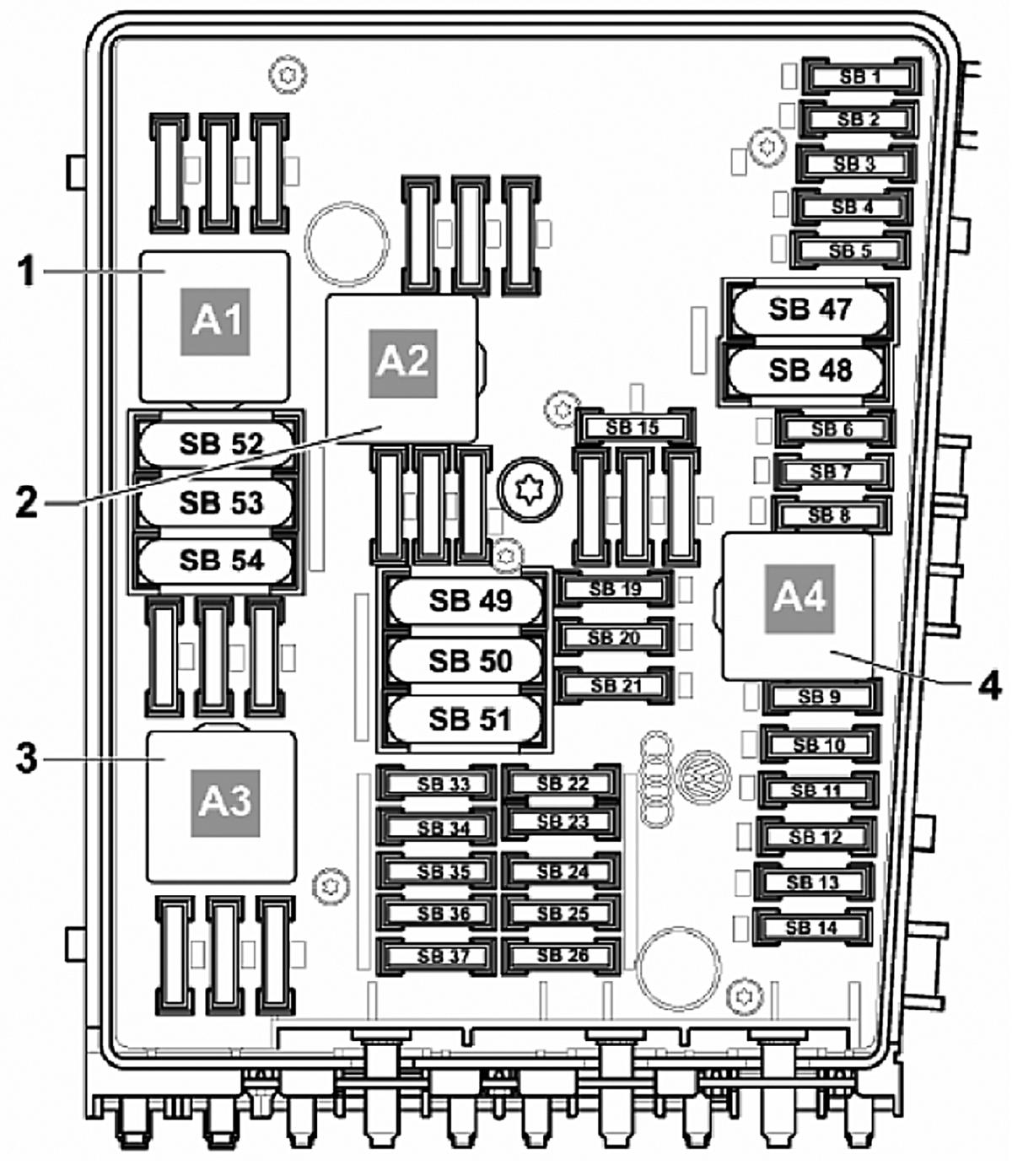

| Electronics Box High | Left side of engine compartment. See Figure. |

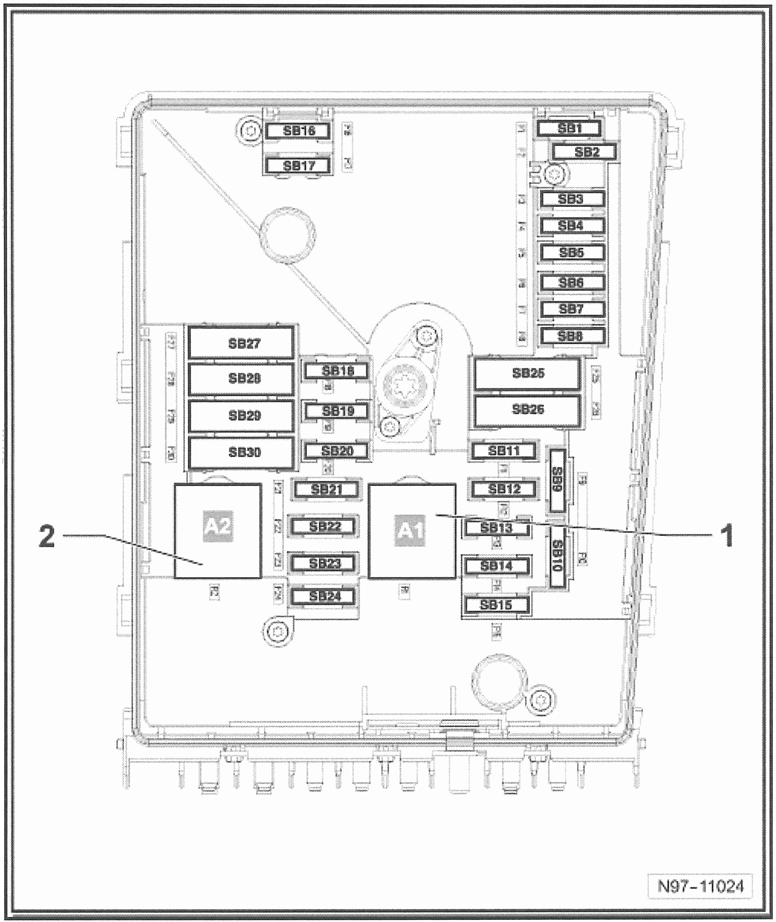

| Electronics Box Low | Left side of engine compartment. See Figure. |
| Fuse Panel | Behind left side of dash. |
| Power Seat Adjustment Circuit Breaker 1 (A) | On relay panel. See Figure. |
| Relay Carrier | Under left side of dash. See Figure. |
| Relay Panel | Under left side of dash. See Figure. |
