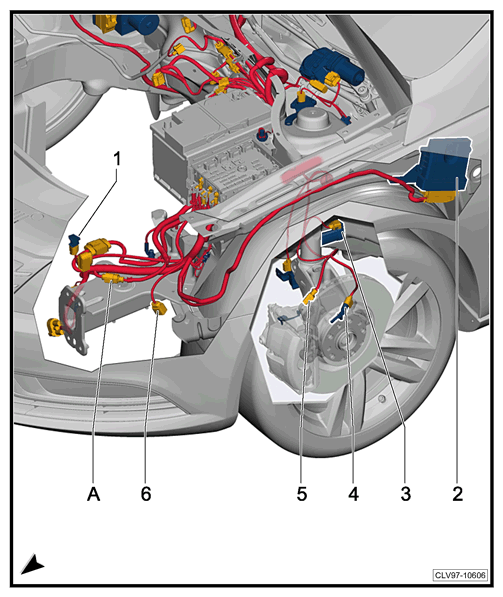

Engine Compartment, Left I

  1. 1 - Driver front airbag crash sensor -G283-
  2. 2 - Transmission control module -J217-
  3. 3 - Left front damping adjustment valve -N336-
  4. 4 - Left front ABS wheel speed sensor -G47-
  5. 5 - Left front brake pad wear sensor -G34-
  6. 6 - Secondary air injection pump motor -V101-
  7. A - 6-pin connector -T6e-
G12752574Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
