Underbody Protection Overview

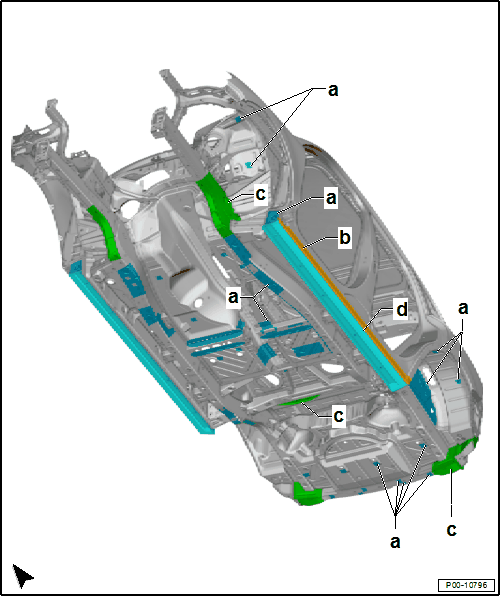

GWWP00-10796Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. a -Underbody Protection
    • Layer thickness 0.3 mm
  2. b -Underbody Protection
    • Layer thickness 0.5 mm
  3. c -Underbody Protection
    • Layer thickness 0.6 mm
  4. d -Underbody Protection
    • Layer thickness 1.2 mm
