Wiring Diagram (Engines: CRUA - 1 Of 2)
›
Wiring Diagrams
›

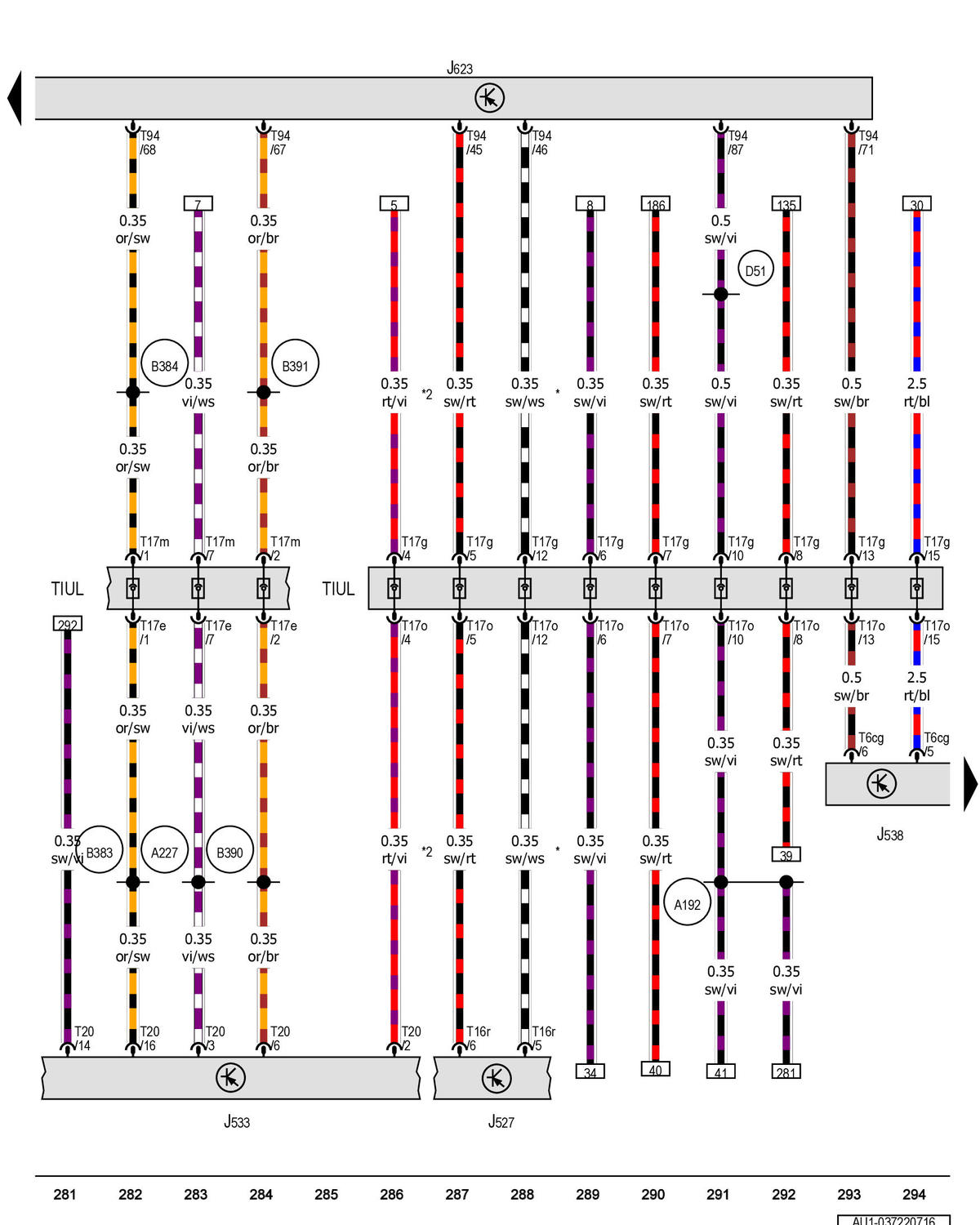

Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Fuel Pump Control Module, Engine Control Module
›
Notes
Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Fuel Pump Control Module, Engine Control Module: Notes
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
