Compass Magnetic Field Sensor, Removing And Installing: Removing
-- Remove the rear lid trim panel. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

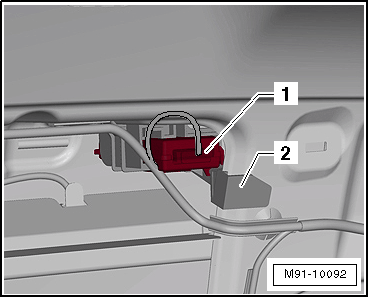

-- Using a small screwdriver, remove the Compass Magnetic Field Sensor -G197- -1- from the bracket -2-.
-- Disconnect the connector.
