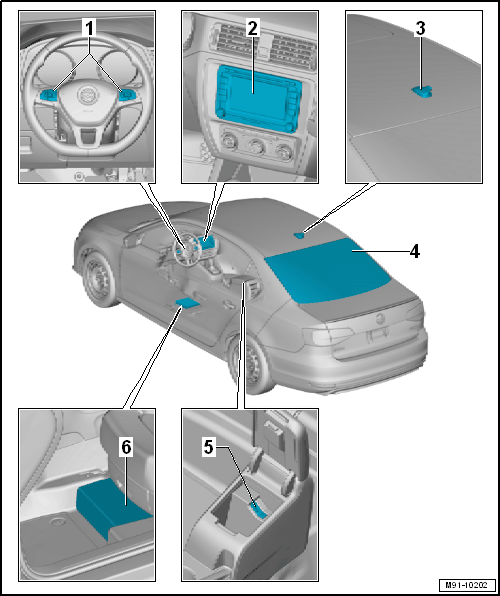

Component Location Overview - Infotainment System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Multifunction Buttons on the Right Side of the Steering Wheel
   • Left Multifunction Buttons on Steering Wheel -E440- /Right Multifunction Buttons on Steering Wheel -E441-
   • Removing and installing. Refer to RIGHT/LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441- / -E440-, REMOVING AND INSTALLING .
2. Front Information Display Control Head -J685-
   • Inside the center of the instrument panel
   • Removing and installing. Refer to RADIO, REMOVING AND INSTALLING .
3. Roof Antenna -RX5-
   • Removing and installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
4. Rear Window Antenna
5. Connection for External Multimedia Devices
   • Refer to CONNECTION FOR EXTERNAL MULTIMEDIA DEVICES  for more information.
6. Amplifier - R12- for the Digital Sound System
   • Under the left front seat
   • Removing and installing. Refer to Amplifier -R12- FOR DIGITAL SOUND PACKAGE, REMOVING AND INSTALLING .
