Ribbed Belt, Checking Condition
Perform The Following Procedure:
-- Turn the engine by the vibration damper/belt pulley using a socket.

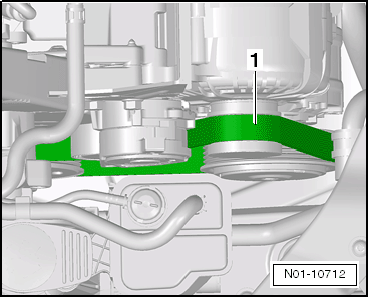

Check the ribbed belt -1- for:
- Sub-surface cracks (cracks, core ruptures, cross sectional breaks)
- Separation (cover layer, belt cords)
- Breaks at lower layer
- Fraying of cords
- Wear at flanks (material wear, frayed flanks, hardening or glazing of flanks, surface cracks)
- Oil or grease contamination
CAUTION:
- The ribbed belt must be replaced if any damage is found.
- This will prevent any belt malfunctions.
- Replacing the belt is a repair procedure.
