Wiring Diagram (Engines: CNSA, CNSB, CXBA, CXBB)
›
Wiring Diagrams
›

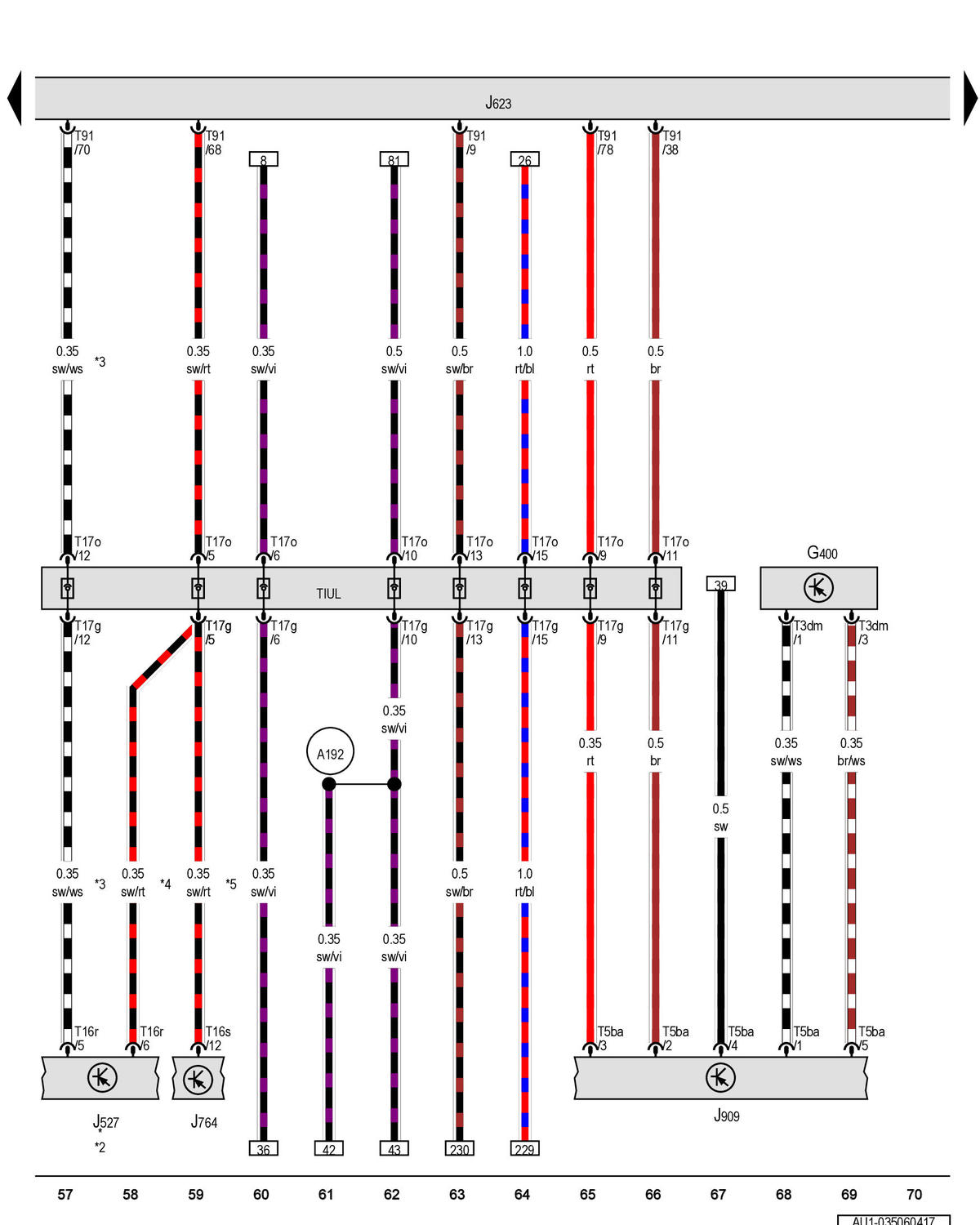

Steering Column Electronics Control Module, Engine Control Module, Electronic Steering Column Lock Control Module
›
Notes
Steering Column Electronics Control Module, Engine Control Module, Electronic Steering Column Lock Control Module: Notes
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
