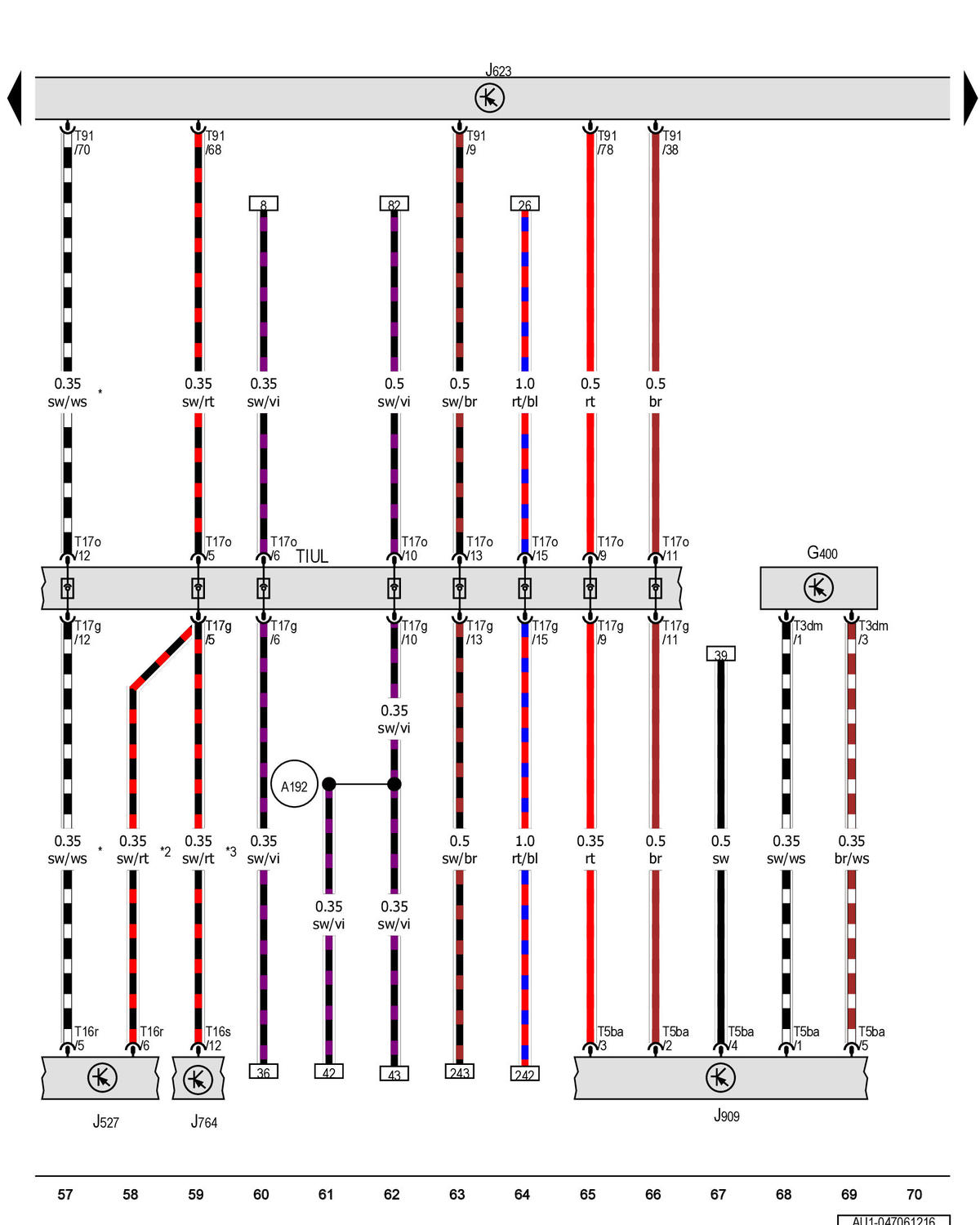

Fuel Tank Pressure Sensor, Steering Column Electronics Control Module, Engine Control Module, Electronic Steering Column Lock Control Module, Fuel Tank Leak Detection Control Module: Notes

GWWAU1-047061216Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
