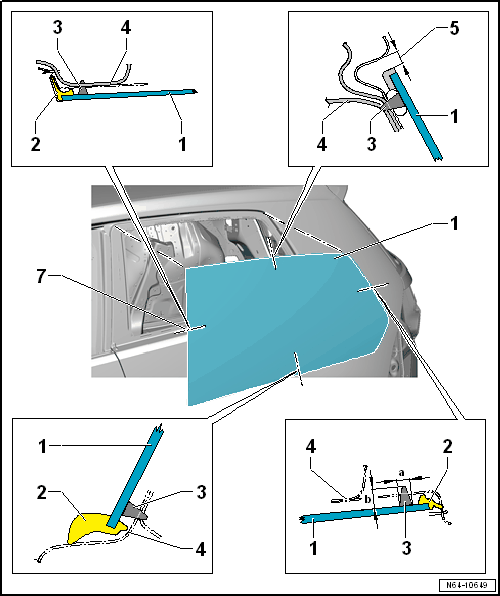

Overview - Rear Side Window
- Rear Side Window
- Rear Side Window, Removing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
- Seal
- Is a component of the rear side window.
- PUR Adhesive Sealant
- Bead diameter: Height = 10 mm -dimension b-, width = 6.5 mm -dimension a- (including pre-coating, residual material on window glass and window glass flange)
- Minimum Curing Time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Body Flange
- Gap Dimension
- Must be uniform.
