Torque Converter Overview

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

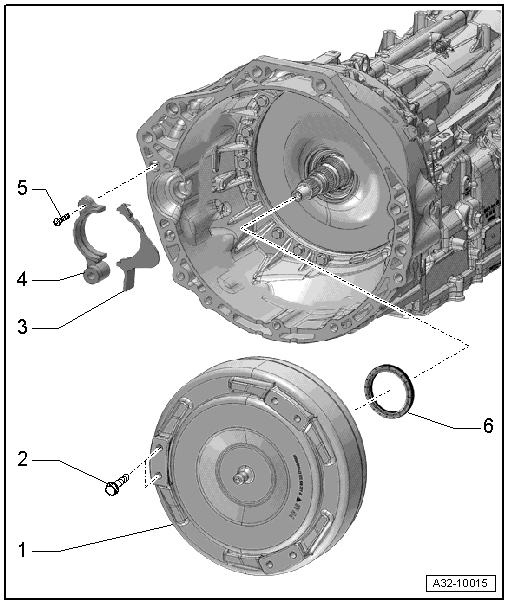

Fig 1: Exploded View Of Torque Converter

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Torque Converter
- Torque Converter, Checking. Refer to TORQUE CONVERTER, CHECKING .
- Torque Converter, Draining. Refer to TORQUE CONVERTER, DRAINING .
- Torque Converter, Installing. Refer to TORQUE CONVERTER, INSTALLING .
- Check the installation dimension for the torque converter before installing the transmission. Refer to Figure
Bolt
- 85 Nm
- Replace after removing
Cover
- Version depending on the engine installed
- The covers prevent dust and dirt from getting into the torque converter housing.
Flange
- For the starter
- 3.0L TFSI engine only
Bolt
- 20 Nm
Seal
- For the torque converter
- Torque Converter Seal, Removing and Installing. Refer to TORQUE CONVERTER SEAL, REMOVING AND INSTALLING .
