Vehicle Positioning System Control Module, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the bolts -3- and remove the Vehicle Positioning System Control Module -J895- -1- with the bracket -2-.

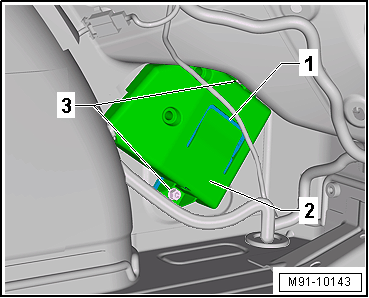

Fig 1: Identifying Vehicle Positioning System Control Module With Bracket And Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connectors from the Vehicle Positioning System Control Module -J895- -1-.

-- Remove the Vehicle Positioning System Control Module -J895- -1- from the bracket -2-.
