Fan Shroud, Removing And Installing: Notes

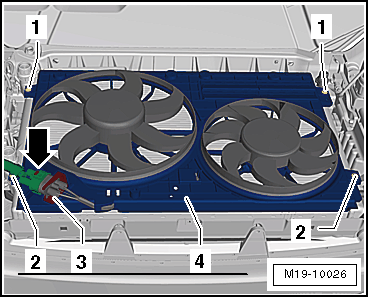

-- Remove the bolts at the top of the fan shroud -1-.

Fig 1: Identifying Coolant Fans
GWWM19-10026Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the noise insulation. Refer to NOISE INSULATION (CONVERTIBLE) / NOISE INSULATION, REMOVING AND INSTALLING (CONVERTIBLE) .

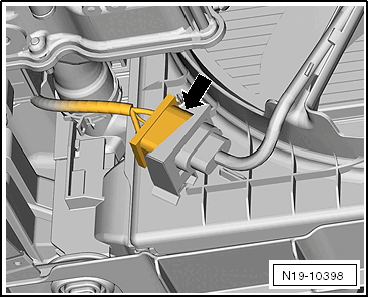

-- Release and disconnect the connector -arrow-.

Fig 2: Locating Connector
GWWN19-10398Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts at the bottom of the fan shroud -2-.

Fig 3: Identifying Coolant Fans
GWWM19-10026Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the air shroud downward.
