Connection For External Multimedia Devices, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment.

-- If equipped remove the ignition key.

-- Remove the center console cover. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

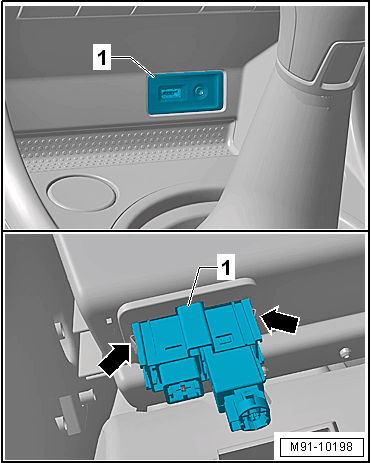

-- Push together the clips -arrows- on the External Audio Source Connection -R199- -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- At the same time remove the External Audio Source Connection -R199- -1- from the center console cover.
