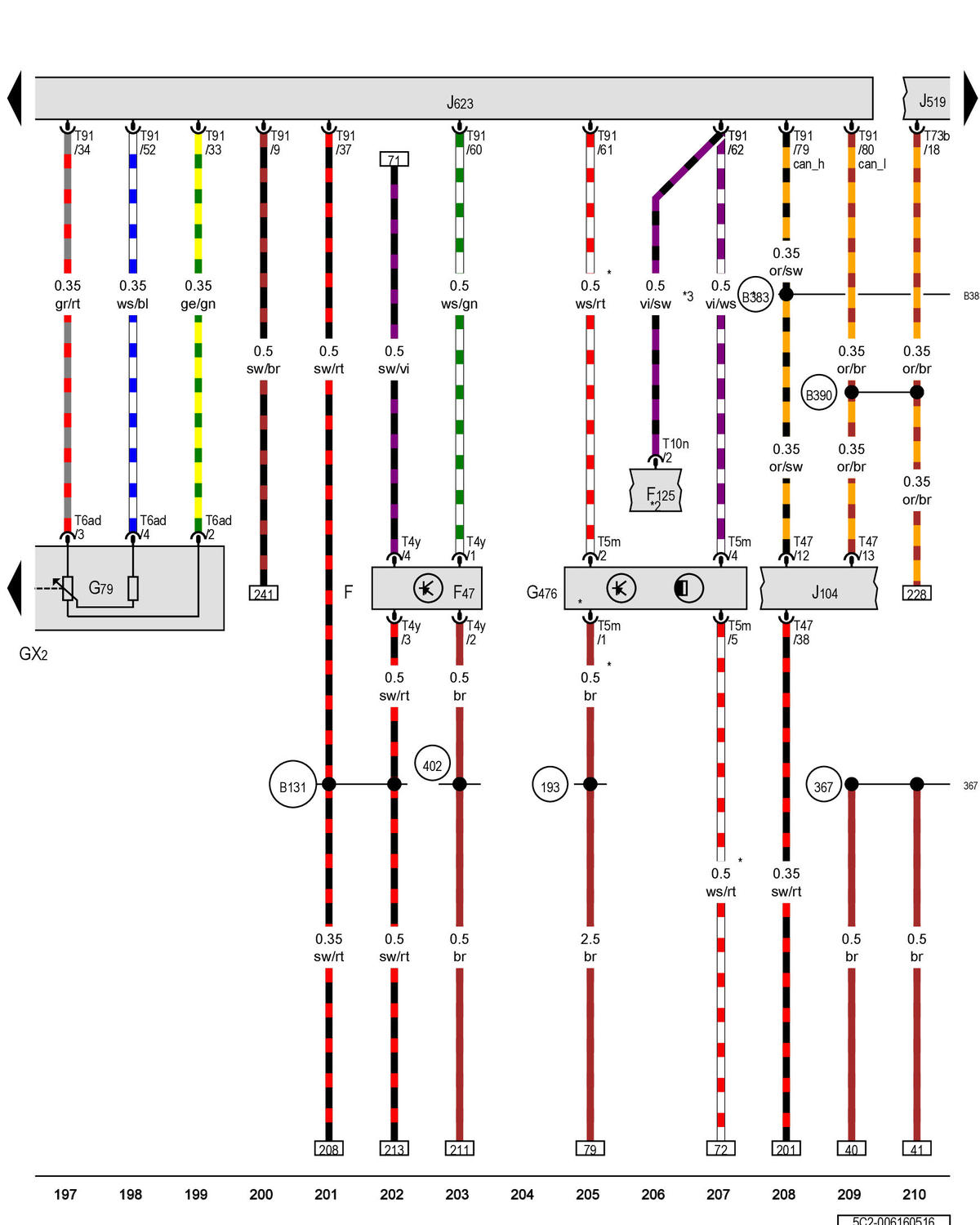

Brake Lamp Switch, Brake Pedal Switch, Accelerator Pedal Module, Accelerator Pedal Position Sensor, Clutch Position Sensor, Vehicle Electrical System Control Module, Engine Control Module: Notes

GWW5C2-006160516Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
