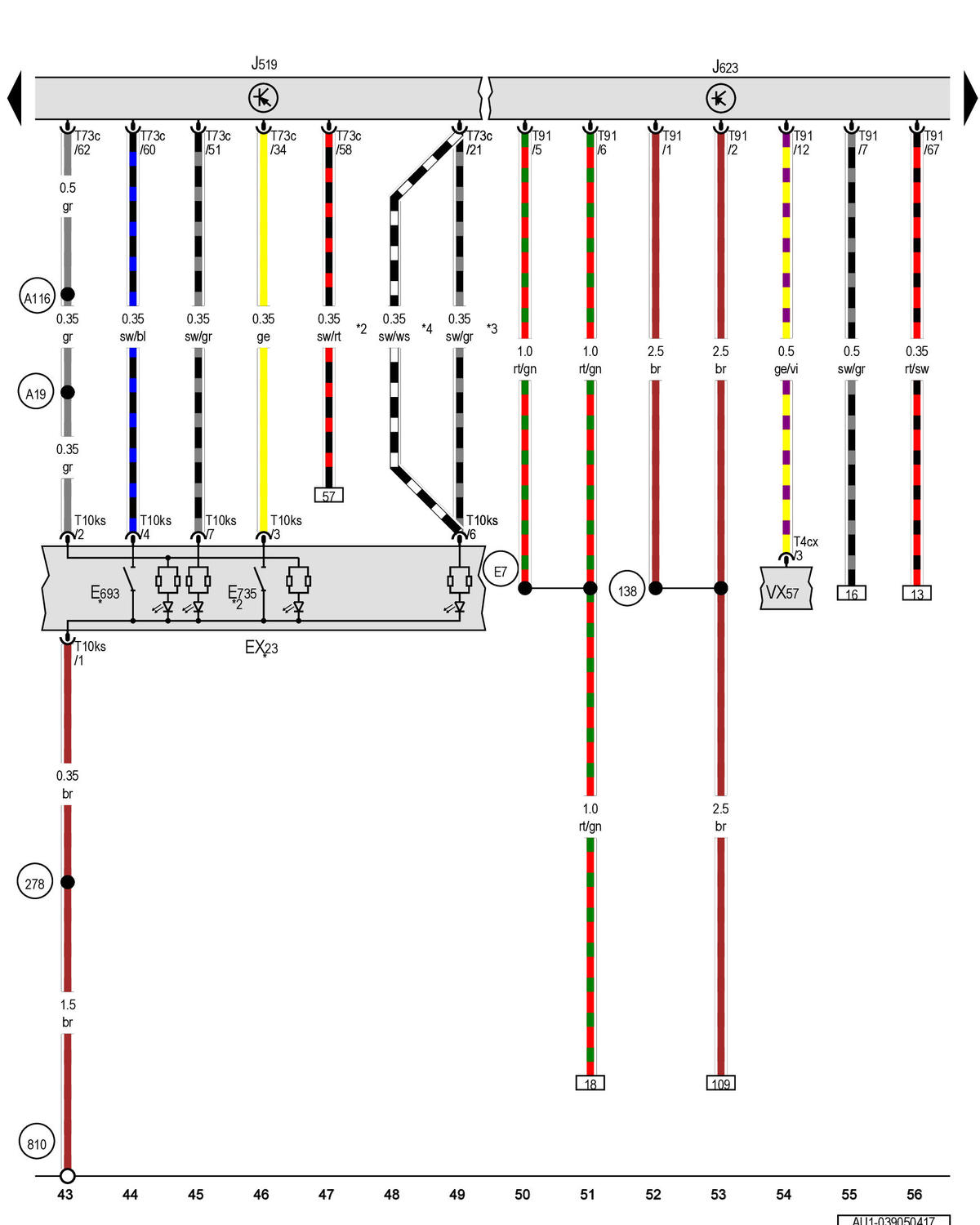

Center Console Switch Module 1, Start/Stop Mode Button, Driving Profile Selection Button, Vehicle Electrical System Control Module, Engine Control Module: Notes

GWWAU1-039050417Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
