Wiring Diagram (Engines: CXBA, CXBB)
›
Wiring Diagrams
›

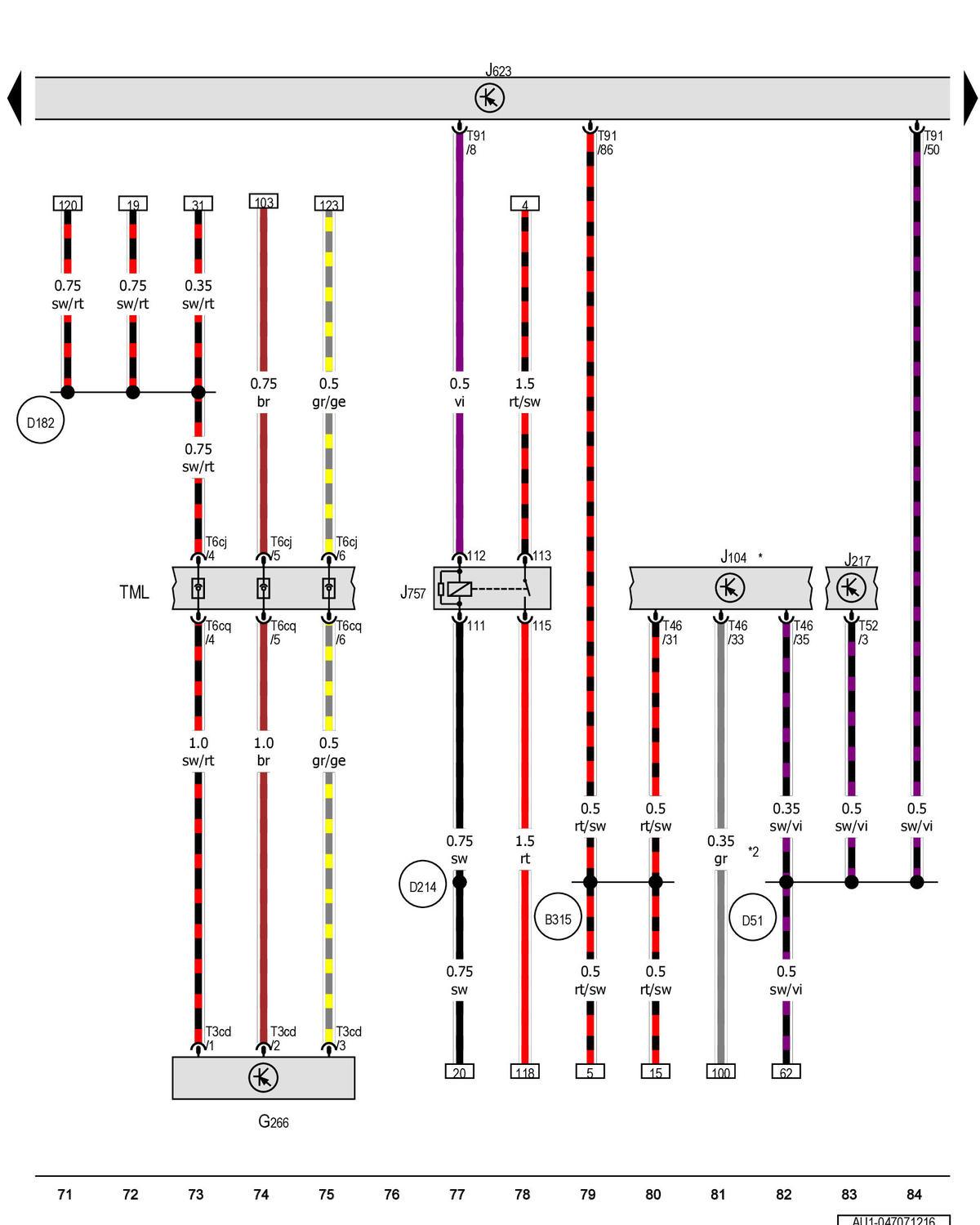

Oil Level Thermal Sensor, Abs Control Module, Transmission Control Module, Engine Control Module, Engine Component Power Supply Relay
›
Notes
Oil Level Thermal Sensor, Abs Control Module, Transmission Control Module, Engine Control Module, Engine Component Power Supply Relay: Notes
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
