Blind Spot Detection Control Module - J1086-/Blind Spot Detection Control Module 2 - J1087-, Removing and Installing: Removing
- Remove the rear bumper. Refer to Rear Bumper; Bumper Cover, Removing and Installing.

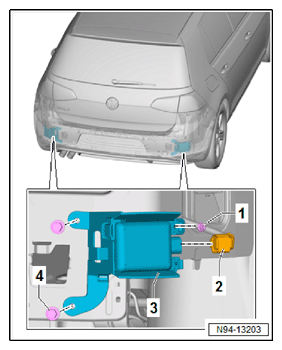

- Disconnect the connector -2-.
- Remove the nut -1- and the screws -4- for the bracket.
- Remove the Blind Spot Detection Control Module-J1086-/Blind Spot Detection Control Module 2 - J1087- with the bracket -1-.
- Remove the Blind Spot Detection Control Module - J1086-/Blind Spot Detection Control Module 2 - J1087- -2- from the bracket -1-.
