Blind Spot Detection Control Module - J1086-/Blind Spot Detection Control Module 2 - J1087-, Calibrating: Procedure:

• Turn on the -VAS6350/4- at the power switch -3-.
  • The green LED -1- must turn on.
  NOTE: If the red LED -2- turns on: check the -VAS6350/4-.
• Connect the Vehicle Diagnostic Tester.
• Select calibration.
• Follow the instructions in the Vehicle Diagnostic Tester display.
  NOTE: The vehicle in the illustration is only a basic outline.

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

During the program sequence, there is a prompt to switch the - VAS6350/4- from the left to the right side of the -VAS6350-.

• Turn off the -VAS6350/4- and reposition the calibration tool.
  • When installed correctly, the vehicle electrical system voltage wire must be connected at the bottom left of the calibration device (as seen in direction of travel).

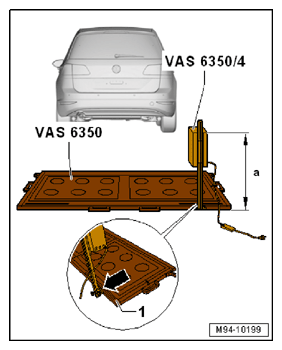

  • Dimension -a- = 606 mm (measured from the upper edge of calibration device to floor).
  • Right adjustment dimension 621 mm (read on measuring scale -1-).

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Turn on the -VAS6350/4- at the power switch -3-.
  • The green LED -1- must turn on.
• Follow the instructions in the Vehicle Diagnostic Tester display.

After successfully calibrating the lane change assistance, switch off the ignition and disconnect the diagnostic connector.
