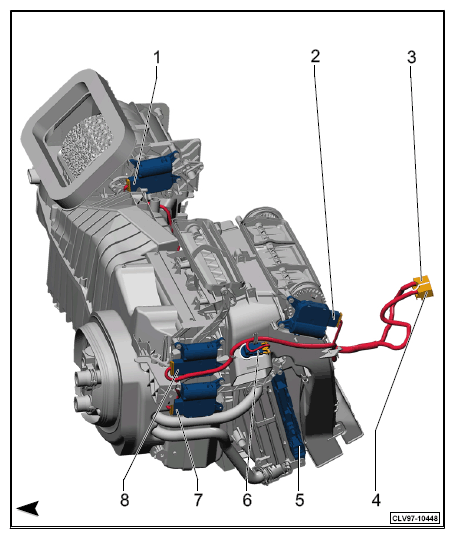

CLIMATRONIC, Part II
- 1 - Air Recirculation Door -VX52-
- 1 - Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-
- 1 - Fresh Air/Recirculating Air/Back Pressure Door Motor Position Sensor -G644-
- 2 - Air Distribution Door -VX33-
- 2 - Front Air Distribution Door Motor -V426-
- 2 - Front Air Distribution Door Motor Position Sensor -G642-
- 3
- Climatronic Control Module -J255
- 16-Pin Connector -T16K-
- 4
- Climatronic Control Module -J255
- 16-Pin Connector -T16E-
- 5 - Auxiliary Heater Heating Element -Z35-
- 6 - Left Footwell Vent Temperature Sensor -G261-
- 7 - Left Front Control Temperature Door -VX34-
- 7 - Left Temperature Door Motor -V158-
- 7 - Left Temperature Door Potentiometer/Actuator -G220-
- 8 - Defroster Door -VX47-
- 8 - Defroster Door Motor -V107-
- 8
- Defroster Door Motor Position Sensor -G135-
