Engine Compartment, Left Part II

  1. 1  - Driver front airbag crash sensor -G283-
  2. 2  - 8-pin connector -T8M-
  3. 2  - 4-pin connector -T4T-
  4. 3  - High tone horn -H2-
  5. 4  - Secondary air injection pump motor -V101-
  6. 5  - Left front ABS wheel speed sensor -G47-
  7. 6  - Passenger side front airbag crash sensor -G284-
  8. 7  - Water separator sensor -G63-
  9. 8  - High pressure sensor -G65-
  10. 9  - Back-up lamp switch -F4-
  11. 10  - 6-pin connector -T6Z-
  12. 10  - 10-pin connector -T10D-
  13. 11  - Power steering control module -J500-

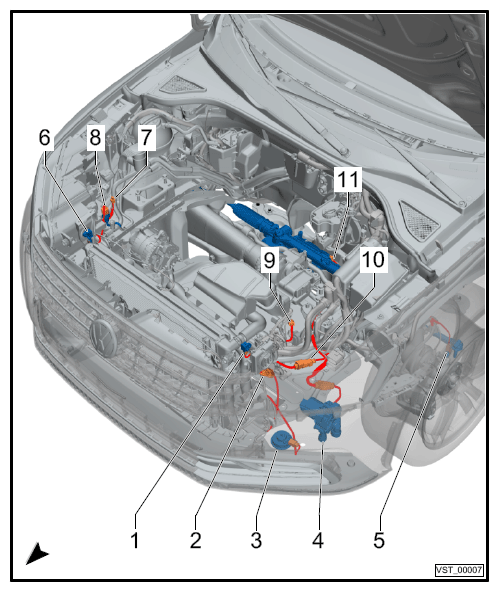

    G12756551Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
