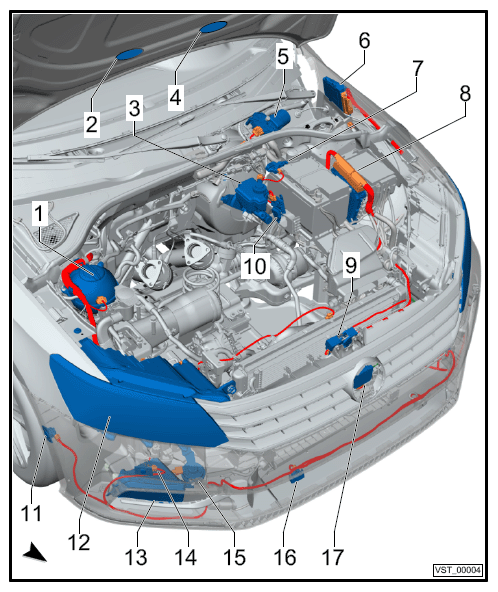

Engine Compartment, Right Part I
- 1 - Engine coolant level sensor -G32-
- 2 - Right washer nozzle heater -Z21-
- 3 - Brake fluid level warning switch -F34-
- 3 - Brake lamp switch -F-
- 4 - Left washer nozzle heater -Z20-
- 5 - Wiper motor control module -J400-
- 6
- Transmission control module -J217-
- Only For Vehicles With Automatic Transmission (Not For DSG)
- Fitting Location For Vehicles With DSG transmission refer to → 5 - Transmission control module -J217-
- 7
- Battery Monitoring Control Module -J367-
- On the positive Terminal of the Battery
- 8 - Engine control module -J623-
- 9 - Engine hood contact switch -F266-
- 10 - NOx sensor control module -J583-
- 11 - Right front parallel parking assistance sensor -G569-
- 12
- Right front headlamp -MX2-
- Right daytime running lamp and position lamp control module -J861-
- 13 - Right fog lamp -MX12-
- 14 - Right front parking aid sensor -G252-
- 15 - Low tone horn -H7-
- 16 - Right front center parking aid sensor -G253-
- 17
- Distance regulation control module -J428-
