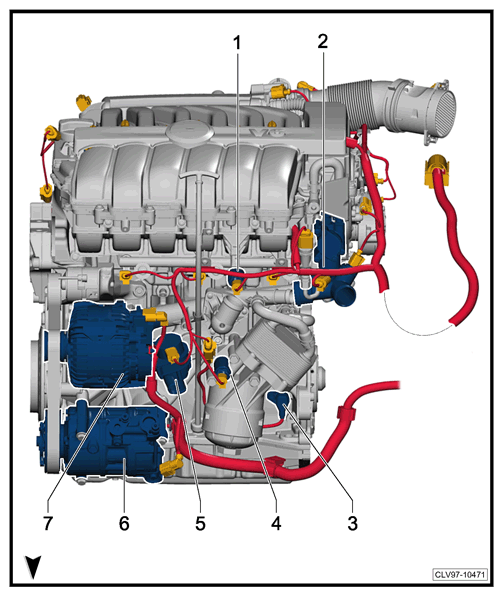

3.6L FSI, CDVB Left

  1. 1  - Knock Sensor 2 -G66-
  2. 2  - Fuel Pressure Regulator Valve -N276-
  3. 3  - Engine Speed Sensor -G28-
  4. 4  - Oil Pressure Switch -F1-
  5. 5  - Coolant Recirculation Pump -V50-
  6. 6  - A/C Compressor Regulator Valve -N280-
  7. 6  - Compressor Magnetic Clutch -N421-
  8. 7  - Generator With Voltage Regulator -CX1-
    G12751094Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
