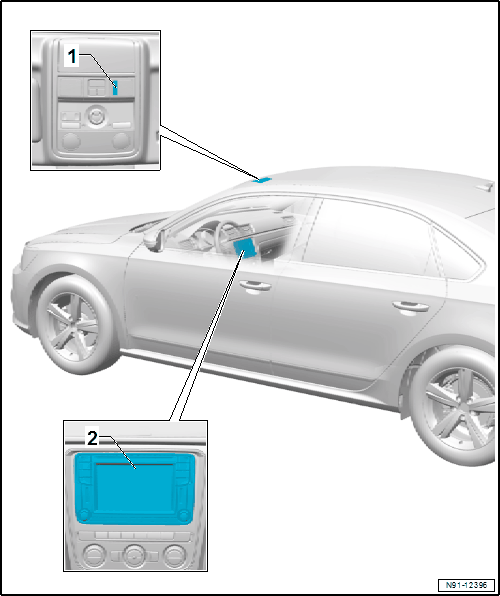

Component Location Overview - Telephone System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Telephone Microphone -R38-
   • In the front interior lamp/reading lamp
   • Removing and installing. Refer to Telephone Microphone -R38-, REMOVING AND INSTALLING .
2. Information Electronics Control Module 1 -J794-
   • Inside the center of the instrument panel
   • Connected with Front Information Display Control Head -J685-
   • Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
   • Connector Assignment. Refer to => Wiring Diagram, Troubleshooting & Component locations.
