Emergency Release From P

Special tools and workshop equipment required

• Backrest Panel Tool: 3370

• Observe the safety precautions. Refer to SAFETY PRECAUTIONS .

Do Not Remove the Handle.

-- Press the brake or operate the electromechanical parking brake.

-- Pry off the cover.

-- Place the : 3370  under the plastic frame for the boot in direction of -arrow 1-.

-- Pull the plastic ring out of the center console -A- in direction of -arrow 2-.

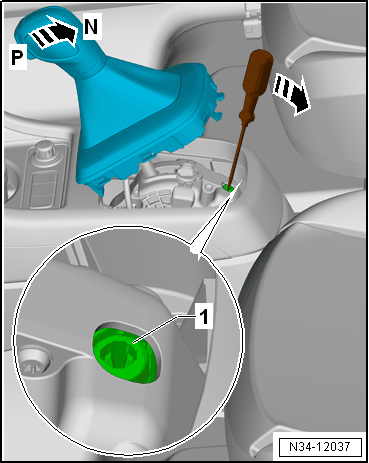

-- Push the eye -1- with a screwdriver in the direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The selector lever cannot be moved out of >>P<<.
