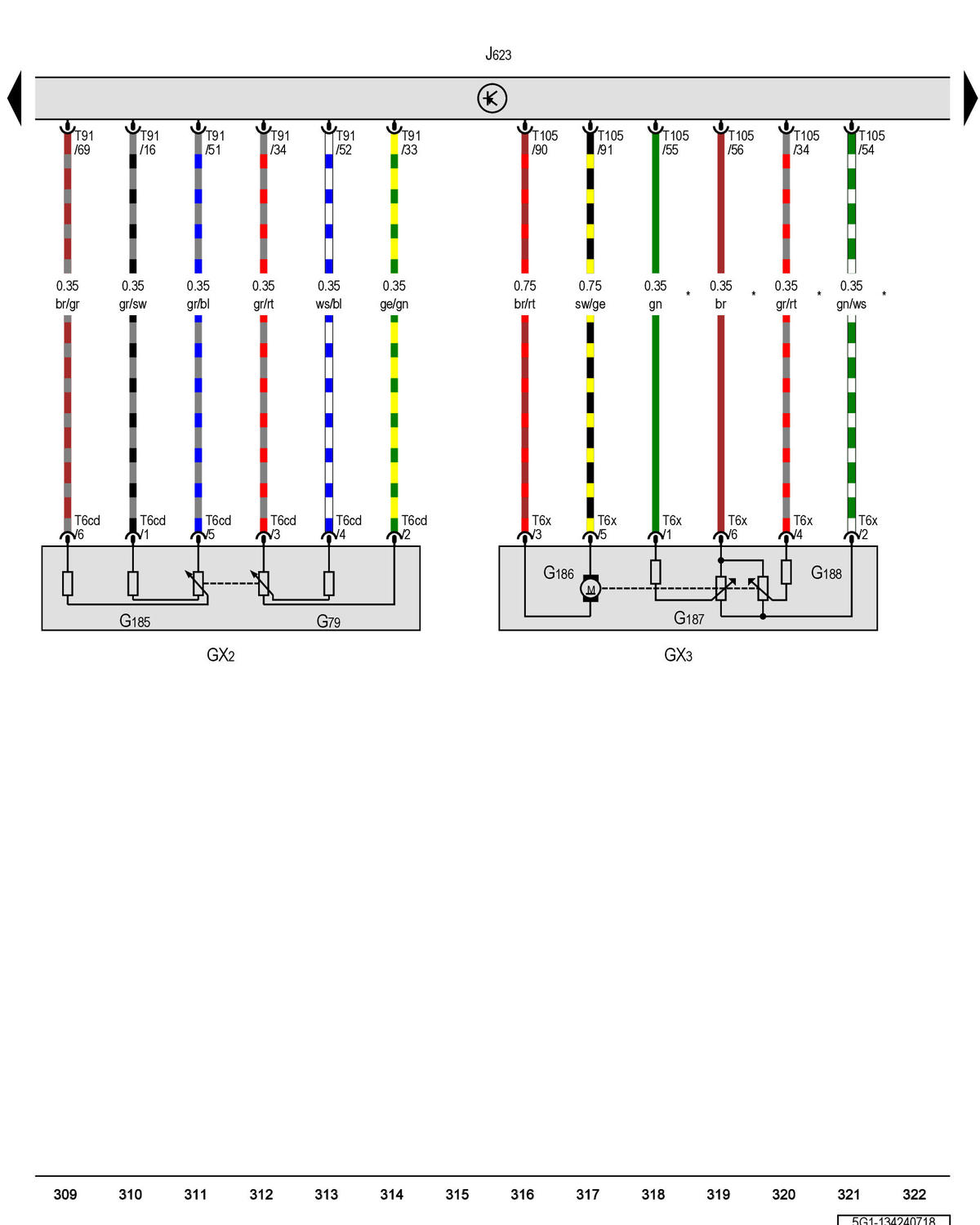

Accelerator Pedal Module, Throttle Valve Control Module, Engine/Motor Control Module: Notes

GWW5G1-134240718

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
