Volkswagen
›
2018
›
Passat GT
›
Repair and Diagnosis (Single Page)
›
Quick Lookups
›
Wiring Diagrams
›

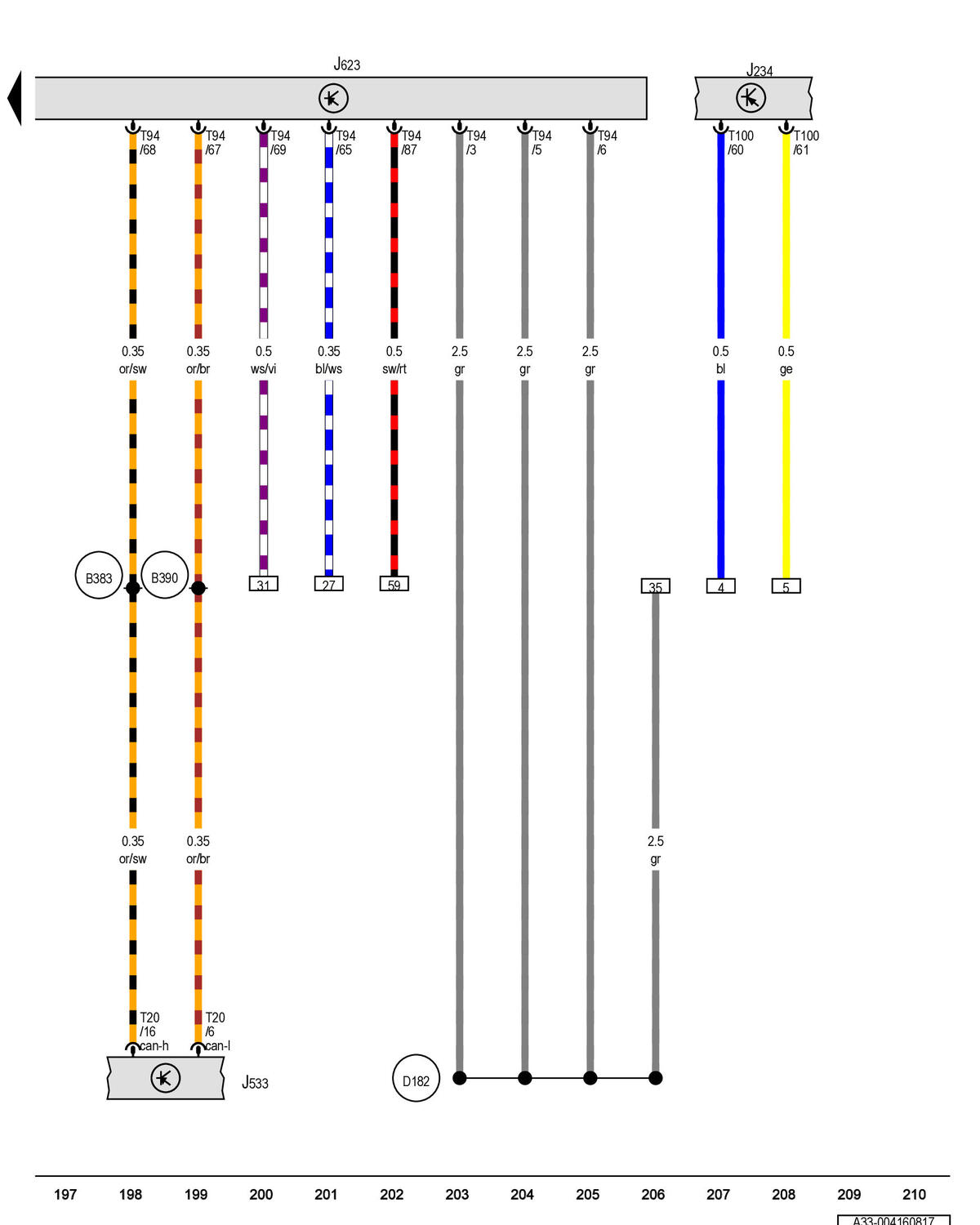

Wiring Diagram (Engines: CDVB)
›
SLP Title
›
Airbag Control Module, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module
›
Notes
Airbag Control Module, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module: Notes
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
