Volkswagen
›
2019
›
Arteon SE R-Line, AWD
›
Repair and Diagnosis (Single Page)
›
Quick Lookups
›
Wiring Diagrams
›
OEM Wiring Diagram
›

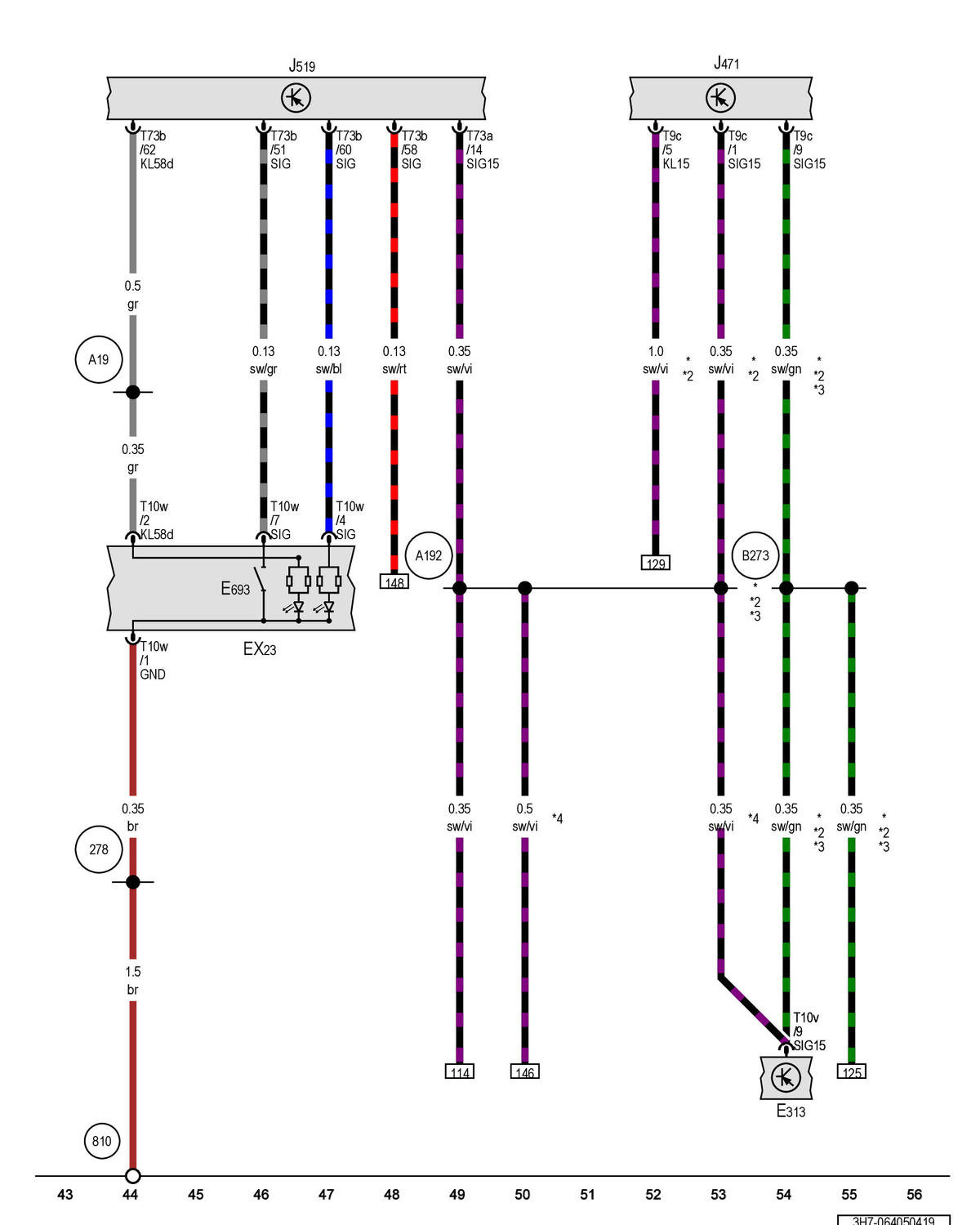

Wiring Diagram
›
Center Console Switch Module 1, Selector Lever, Remote Start System Relay, Vehicle Electrical System Control Module
›
Notes
Center Console Switch Module 1, Selector Lever, Remote Start System Relay, Vehicle Electrical System Control Module: Notes
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
