Volkswagen
›
2019
›
Arteon SE R-Line, AWD
›
Repair and Diagnosis (Single Page)
›
Quick Lookups
›
Wiring Diagrams
›
OEM Wiring Diagram
›
Wiring Diagram
›

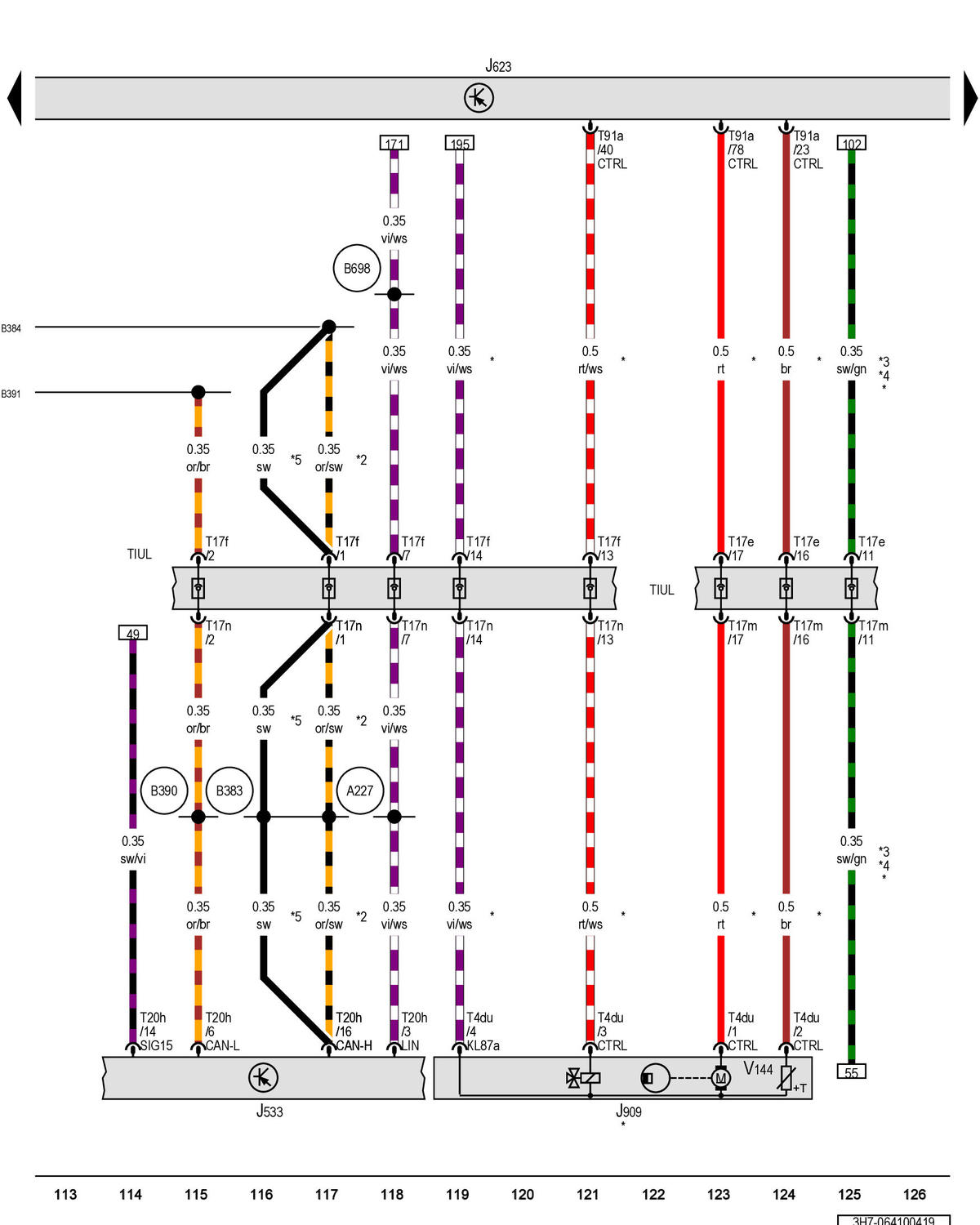

Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module
›
Notes
Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module: Notes
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
