Overview - ATF Circuit

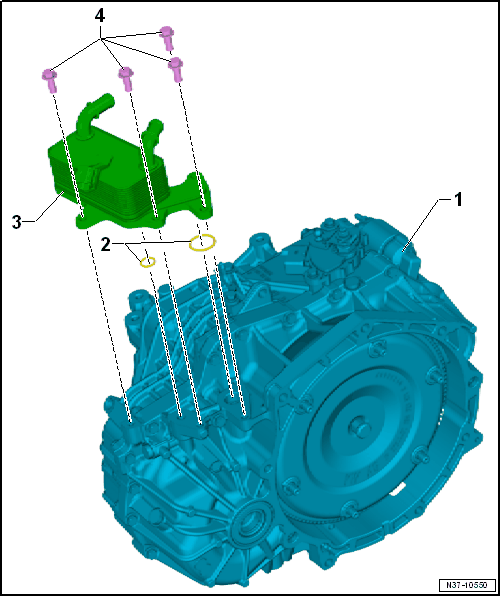

Fig 1: Exploded View Of ATF Circuit
GWWN37-10550Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Transmission
  2. O-Rings
    • Replace after removing
  3. ATF Cooler
  4. Bolt
    • 20 Nm
    • Quantity: 4, M8 x 25
